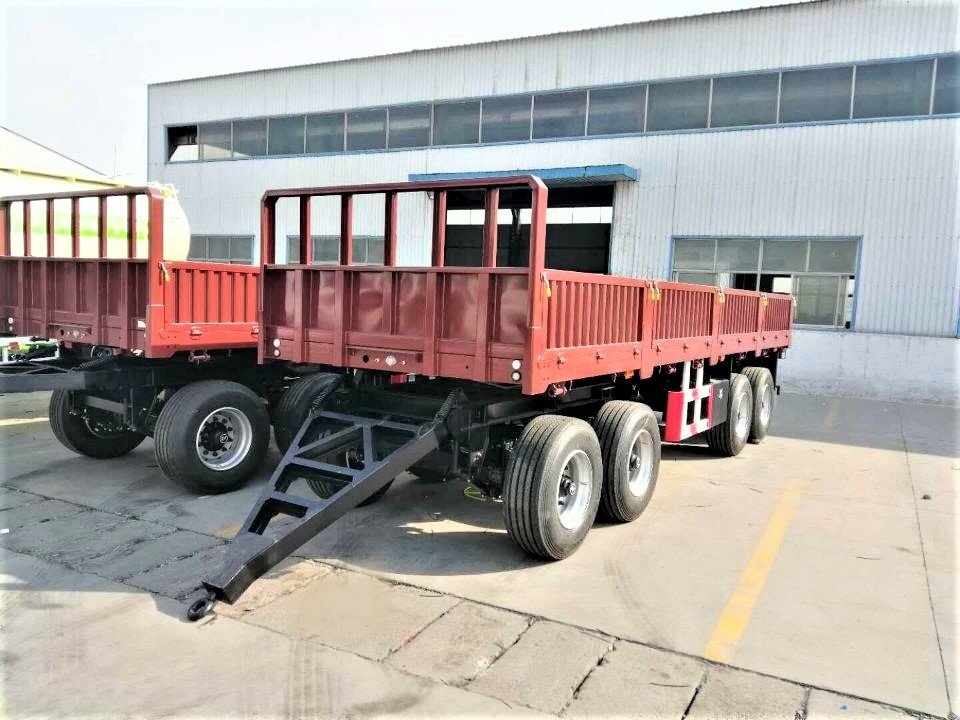

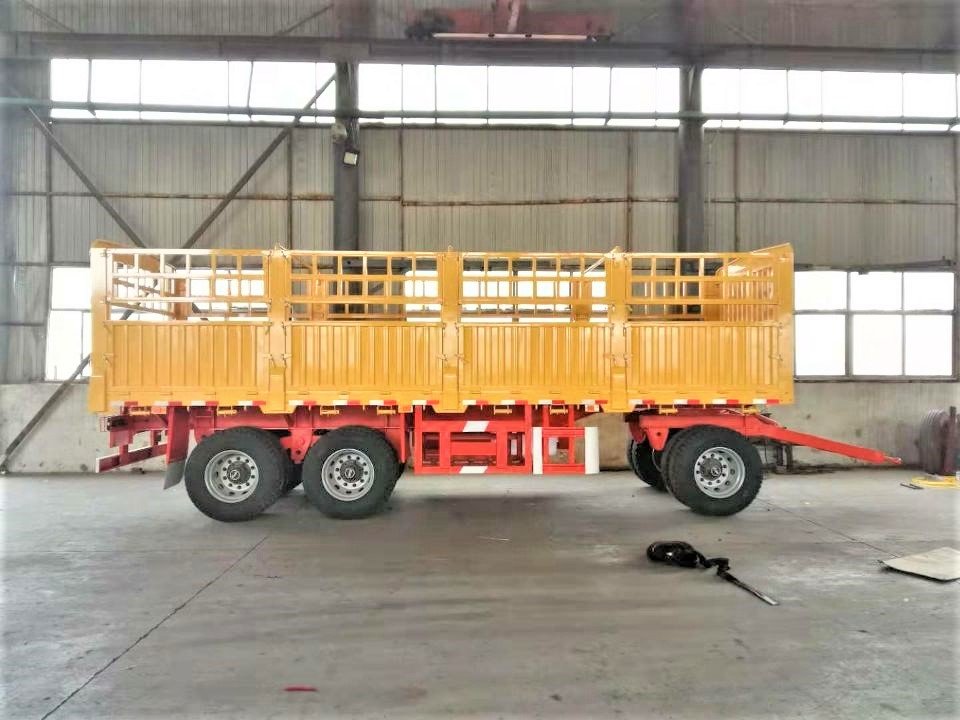

Full Drawbar Trailer
ZW Group Full Drawbar Trailers are expertly engineered for heavy-duty and long-distance freight transport. Featuring robust construction and high load capacity, these trailers not only offer excellent stability but also ensure reliable performance across a wide range of cargo types. Moreover, with various customizable options available, customers can tailor the trailers to meet specific operational needs. Additionally, our strict quality control processes guarantee durability and safety in every unit delivered. Therefore, whether you are transporting bulk materials, machinery, or general freight, ZW Group Full Drawbar Trailers provide efficient, safe, and cost-effective logistics solutions that adapt seamlessly to diverse industry demands.
Ready to Order? Get Your Quote Today!
Expert support worldwide — get your personalized quote today.
📌 Product Overview
Why Choose ZW Group Full Drawbar Trailer?
At Shandong ZW Vehicle Group, we have over a decade of international experience in manufacturing and exporting full drawbar trailers and heavy-duty transport equipment. As a trusted supplier to clients in more than 60 countries worldwide, we pride ourselves on delivering high-quality products, customized solutions, and prompt, reliable after-sales service.
Our modern production facility spans 50,000m² and is equipped with advanced machinery. Additionally, our team of over 200 skilled professionals is committed to providing durable and efficient transport solutions. Each ZW Group full drawbar trailer is meticulously engineered to offer superior load capacity, excellent stability, and outstanding adaptability, making it ideal for safely transporting heavy and bulky cargo across various road conditions.
Moreover, with strict quality control procedures and comprehensive global logistics support, we ensure timely delivery and consistent product performance. Whether you need to transport machinery, bulk goods, or general freight, ZW Group is your dependable partner every step of the way.
Applications in Logistics & Industry
Full drawbar trailers are widely used in industries such as bulk transport, logistics, and general freight due to their high load capacity and stable structure. These trailers are specifically designed to carry heavy, bulky, and palletized cargo, including containers, construction materials, and industrial goods.
In the logistics and freight sector, full drawbar trailers enable efficient and safe transport of large volumes over long distances. Their robust chassis and well-balanced design provide excellent road stability and load distribution, making them ideal for diverse cargo types and complex transport routes.
Furthermore, thanks to their durable construction and versatility, full drawbar trailers are essential assets for companies seeking reliable and flexible solutions to optimize cargo transport while ensuring safety and operational efficiency.
🛠️ Operation & Specifications
How to Load Heavy Equipment Using a Full Drawbar Trailer?
Loading heavy equipment onto a full drawbar trailer requires careful preparation and the right handling tools to ensure safety and efficiency. First, position the trailer on a flat and stable surface near the loading area. Utilize cranes, forklifts, or ramps that are appropriate for the size and weight of the equipment.
Next, carefully place or drive the machinery onto the trailer deck, ensuring it is positioned centrally to maintain balanced weight distribution. Secure the load firmly with heavy-duty chains, binders, or straps at multiple points to prevent any movement during transport. It is crucial to inspect all securing devices before departure to verify tightness and reliability.
Thanks to its strong chassis and flat deck design, the full drawbar trailer facilitates the loading and unloading of heavy and bulky cargo, while also allowing easy inspection and compliance with transportation safety standards.
Basic Specifications Table

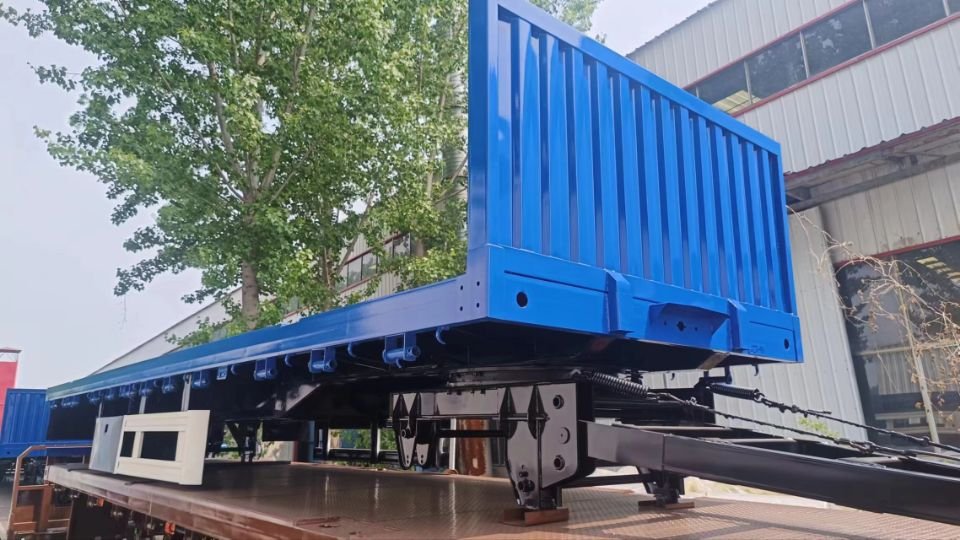

3 Axle Full Drawbar Flatbed Trailer Design Drawing
| Specification | Details |
|---|---|
| Product Type | 3 Axle Full Drawbar Flatbed Trailer |
| Loading Capacity | 40 – 60 Tons |
| Overall Size | 9000mm × 2500mm × 1550mm |
| Platform Length | 9 meters |
| Axles | 2 × 14 Ton FUWA/BPW |
| Suspension | Mechanical Spring Suspension |
| Tires | 315/80R22.5 |
| King Pin | JOST 90# |
| Landing Gear | JOST C200 Heavy Duty |
| Braking System | WABCO Valves and Relays, ABS |
| Container Locks | 4 Units |
📦 Delivery & Components
Package & Shipping Methods
At Shandong ZW Vehicle Group, we take every measure to ensure that all full drawbar trailers are professionally packaged and securely prepared for international transport. Before shipment, each trailer undergoes thorough quality inspection, partial assembly if needed, and precise fastening to prevent any movement or damage during transit.
For overseas delivery, full drawbar trailers are typically shipped via flat rack containers, Ro-Ro (Roll-on/Roll-off) vessels, or bulk cargo ships, depending on trailer size and destination port capabilities. Our experienced logistics team collaborates closely with trusted freight partners to ensure safe, efficient, and timely delivery to ports worldwide.
Moreover, we offer flexible and customized shipping solutions tailored to your requirements—including inland transport arrangements, port handling coordination, and customs clearance support—so you can enjoy a smooth and worry-free purchasing experience from our factory to your final destination.
Key Parts Overview
A full drawbar trailer is composed of several essential components that work together to provide stability, load capacity, and durability:
Main Beam and Frame: Constructed from high-strength steel, forming the backbone of the trailer and supporting heavy loads.
Drawbar: Connects the trailer to the tractor, designed for strength and flexibility during transport.
Axles and Suspension: Typically equipped with 3 axles and heavy-duty suspension systems to ensure smooth rides and balanced weight distribution.
Braking System: Includes air brakes and ABS for safety and reliable stopping power.
Landing Gear: Supports the trailer when detached from the tractor.
Deck: Flatbed surface for loading cargo, often treated for anti-slip and corrosion resistance.
Lighting and Electrical System: Complies with international road safety standards, including LED lights and wiring.
These components ensure that the full drawbar trailer can safely and efficiently handle various freight transport tasks.
🔧 Design Advantages
Main Beam Features
The main beam is the core structural element of the full drawbar trailer, engineered to provide exceptional strength and durability for heavy-duty transportation.
Key features include:
High-Strength Steel Construction: Made from premium-grade Q345 or equivalent steel to withstand heavy loads and resist fatigue over long-term use.
Optimized I-Beam Design: Features a reinforced I-beam profile that offers excellent load distribution and structural stability.
Advanced Welding Techniques: Manufactured using automated submerged arc welding (SAW) for strong, uniform welds that enhance integrity.
Corrosion Resistance: The beam is treated with shot blasting and coated with anti-corrosion primers and paints to ensure longevity in harsh environments.
Precision Fabrication: CNC cutting and laser-guided assembly ensure consistent dimensions and high-quality production standards.
Together, these features guarantee the main beam delivers reliable support and contributes to the trailer’s overall safety and performance.
Tractor & Trailer Connection Compatibility
Full drawbar trailers are designed to be compatible with a wide range of standard tractor units, primarily 6×4 or 6×2 configurations. The connection between tractor and trailer ensures safe, stable, and efficient operation on the road.
Key compatibility features include:
Standard Drawbar Coupling: The drawbar is engineered to fit universal fifth-wheel coupling systems on most tractors, providing secure attachment and easy maneuverability.
Adjustable Height: Drawbar height is adjustable to align with the tractor’s fifth wheel, ensuring optimal weight distribution and stability.
Air and Electrical Connections: Equipped with standardized air brake lines and electrical plugs (7-pin or 15-pin) for full integration of braking and lighting systems between tractor and trailer.
Load Compliance: Designed to meet regional axle load limits and road regulations when paired with compatible tractors.
Flexible Articulation: The connection allows sufficient articulation angle for turning and uneven terrain, maintaining safety and performance.
With these features, full drawbar trailers provide reliable compatibility and seamless operation with a broad range of tractors.
🏭 Factory & Customer Testimonials
Manufacturing Display
At Shandong ZW Vehicle Group, our manufacturing process integrates advanced technology with skilled craftsmanship to produce high-quality full drawbar trailers. Our 50,000m² factory is equipped with state-of-the-art machinery, including CNC plasma cutting, robotic welding, and precision assembly lines tailored for heavy-duty trailer production.
Each full drawbar trailer undergoes rigorous quality control at every stage—from raw material inspection to final assembly—to ensure strength, safety, and reliable performance. Our team of over 200 experienced professionals is committed to upholding strict manufacturing standards and continuous innovation.
We use premium materials such as Q345 high-strength steel and top-grade components sourced from trusted global suppliers. This dedication ensures every trailer leaving our factory meets international quality standards and customer expectations.
Visitors to our facility can observe the entire production process, demonstrating our ability to deliver dependable and customized transportation solutions worldwide.
Customer Feedback
We greatly appreciate the positive feedback from our valued customers regarding our full drawbar trailers. They consistently praise the trailers for their sturdy construction, reliable performance, and versatility across various transportation applications.
Many customers emphasize the trailers’ strong durability, smooth operation, and ease of maintenance, which contribute to improved logistics efficiency and minimized downtime.
Our dedicated after-sales support team provides timely assistance and effective solutions, building long-term trust and satisfaction with our clients.
We remain committed to delivering high-quality full drawbar trailers that meet the diverse needs of customers worldwide.
📈 Case Studies & FAQs
Successful Delivery Cases
Shandong ZW Vehicle Group has a proven track record of successfully delivering full drawbar trailers to clients worldwide. Our trailers have been efficiently deployed in a variety of demanding environments, showcasing outstanding reliability and durability.
From bulk cargo transport to large-scale logistics projects, our full drawbar trailers consistently exceed customer expectations by offering robust performance and versatile adaptability. We ensure every delivery is managed with meticulous care, complying with strict quality and safety standards.
These successful deployments highlight our commitment to excellence and our ability to meet diverse transportation needs across international markets.
❓FAQ
Q1: What is a Full Drawbar Trailer?
A: A full drawbar trailer is a heavy-duty semi-trailer featuring a drawbar connection, designed for transporting large and bulky cargo with high stability.
Q2: What cargo types are suitable for this trailer?
A: Ideal for bulk materials, containers, machinery, and general freight.
Q3: Is the trailer compatible with all tractors?
A: It’s compatible with most standard 6×4 or 6×2 tractors equipped with suitable fifth-wheel couplings.
Q4: How is the trailer shipped internationally?
A: Usually via flat rack containers, Ro-Ro vessels, or bulk cargo ships, depending on size and destination.
Q5: What maintenance does it require?
A: Regular checks on chassis, brakes, suspension, and securing devices are recommended to ensure safe operation.
Q6: Can the trailer be customized?
A: Yes, ZW Group offers customization options to meet specific cargo and operational requirements.
