Self-Propelled Modular Trailer Detailed Description
ZW Group’s Self-Propelled Modular Trailer is designed to meet the rigorous demands of heavy haulage and oversized cargo transportation. Constructed from high-strength Q550 steel, the main beams feature a sophisticated configuration with 50mm upper plates, 60mm lower plates, and dual 16mm middle plates, providing exceptional structural integrity and resistance to bending under extreme loads. The trailer’s hydraulic suspension system delivers superior shock absorption and stability, allowing for smooth maneuvering across uneven terrain and reducing wear on both the cargo and trailer components.
Equipped with premium Fuwa axles rated at 11.5 tons each and JOST hydraulic landing gear at both front and rear, the trailer ensures reliable load distribution and operational safety during loading, transit, and unloading phases. The detachable hydraulic gooseneck, powered by a 2100cc engine coupled with a 10MCY14-1B pump, offers enhanced flexibility in connecting to various tractors and facilitates efficient loading of heavy equipment.
With an overall length of 21,000mm and width of 2,990mm, the trailer supports a maximum load capacity between 230,000 to 250,000 kilograms. It features 80 high-traction 750R15 tires mounted on durable 6.0-15 rims, ensuring optimal grip and stability. The modular design allows customers to customize axle configurations and deck layouts to accommodate specific cargo sizes and weights, making it an ideal choice for transporting wind turbine blades, bridge sections, heavy industrial machinery, pipes, and cranes.
Strict quality control protocols govern every stage of manufacturing—from steel plate cutting and chassis assembly to precision welding and comprehensive inspections—ensuring each trailer meets international standards for safety, durability, and performance. ZW Group’s Self-Propelled Modular Trailer represents a cutting-edge solution for heavy-duty transport challenges worldwide, combining robust engineering with operational efficiency and adaptability.
Product Video
Key Features
Self-Propelled Operation: Integrated hydraulic power pack ensures independent movement without the need for an external tractor.
Custom Axle Configuration: Modular design allows flexible axle combinations and layout based on transport requirements.
Hydraulic Suspension System: Provides precise height adjustment, load balance, and optimal road adaptability for ultra-heavy cargo.
High-Tensile Q550 Steel Frame: Ensures maximum strength and durability under extreme load conditions.
Detachable Hydraulic Gooseneck: Allows easy connection and disconnection for versatile loading and unloading processes.
Steerable Axles: All axles feature hydraulic steering for superior maneuverability in confined spaces.
Heavy-Duty Tires: Equipped with high-load-capacity 750R15 or equivalent tires, supporting up to 250 tons.
Global Standard Components: FUWA/BPW axles, JOST landing gear, WABCO braking systems available for reliable performance and easy maintenance.
Application Versatility: Suitable for transporting wind power equipment, large industrial modules, bridge sections, and oversized construction machinery.
Specifications
| Specification | Detail |
|---|---|
| Product Name | Self-Propelled Modular Trailer (SPMT) |
| Axle Configuration | Customizable (typically 20 axles and above) |
| Axle Brand | JULIN / FUWA / BPW (11.5–16T/axle) |
| Frame Material | Q550 High-Tensile Steel |
| Main Beam | Upper 50 mm, Lower 60 mm, Middle Double 16 mm |
| Overall Dimensions (L×W×H) | Customizable (Example: 21000×2990×1080 mm ±290) |
| Load Flatbed Size | Example: 15500×2990×1080 mm |
| Loading Capacity | 230,000–250,000 kg (customizable) |
| Suspension System | Hydraulic Suspension |
| Steering System | Hydraulic Steering, All-Axle Steerable |
| Gooseneck Type | Hydraulic Detachable Gooseneck with Power Pack |
| Power Pack System | 2100 Engine + 10MCY14-1B Pump |
| Tire Size & Quantity | 750R15, 80 Units (Adjustable) |
| Wheel Rim | 6.0-15 |
| Landing Gear | Hydraulic Support Cylinders (Front & Rear) |
| Braking System | WABCO or Equivalent Dual-Line Air Brake |
| Voltage System | 24V |
Application Scenarios
Wind Energy Projects:
Specifically designed for transporting oversized components such as wind turbine blades, towers, and nacelles with precision and stability.Bridge and Infrastructure Construction:
Ideal for moving heavy bridge sections, girders, and structural elements, ensuring safe and efficient on-site delivery.Power Generation Industry:

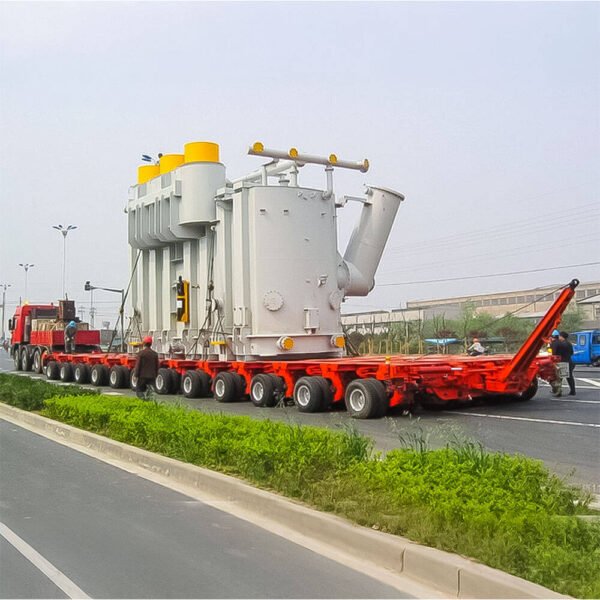

Used to carry large generators, transformers, and other power plant equipment, helping maintain uninterrupted industrial operations.Heavy Equipment Relocation:
Perfect for shifting cranes, excavators, and mining machines from one site to another, especially in challenging terrain.Aerospace and Shipbuilding Sectors:
Suited for handling exceptionally large and delicate cargo like aircraft fuselages or ship blocks, supporting highly specialized industries.
ZW Group Lowbed Trailer Production Workshop
ZW Group operates a modern manufacturing facility equipped with advanced machinery and skilled professionals, managing every step of the production process from steel plate cutting and chassis assembly to precision welding and strict quality inspections. Our facility specializes in producing a full range of lowbed semi-trailers, including detachable gooseneck trailers, extendable lowbed trailers, and modular semi-trailers, all designed for the safe and efficient transport of heavy machinery, construction equipment, and oversized cargo.
All our lowbed trailers are engineered to meet diverse global transportation requirements, ensuring outstanding durability, stability, and compliance with international safety standards across construction, mining, logistics, and industrial applications.
Shipping Scenarios
ZW Group specializes in the efficient production and global delivery of various semi-trailers, with a particular focus on lowbed trailers for transporting heavy machinery and oversized cargo. Backed by advanced manufacturing equipment and a well-organized logistics system, we ensure each shipment is timely and secure. While our product lineup is diverse, every lowbed trailer undergoes strict quality checks before dispatch, guaranteeing it reaches customers in perfect condition. This dedication to reliable delivery strengthens our partnerships with clients across logistics, construction, mining, and manufacturing sectors.
❓FAQ
Q1: What is the maximum payload capacity of a Self-Propelled Modular Trailer?
A:Depending on your specific configuration, ZW Group’s modular trailers can handle between 200 to 2,500 tons. Custom solutions are available to meet diverse project needs.
Q2: Can ZW Group customize the trailer size and axle configuration?
A:Yes, we offer fully customizable designs. From axle numbers to platform length and width, everything can be tailored based on your transport requirements.
Q3: What industries commonly use Self-Propelled Modular Trailers?
A:These trailers serve various sectors, including wind energy, shipbuilding, bridge construction, mining, and aerospace, thanks to their flexibility and load capacity.
Q4: How is steering and suspension controlled on SPMTs?
A:Our SPMTs utilize hydraulic suspension and electronic multi-way steering systems, ensuring precise control and stability even under extreme loads.
Q5: How long does production and delivery usually take?
A:Standard lead time ranges from 20 to 45 days, depending on customization complexity. We always strive to deliver within the agreed timeframe.
