3-Axle Hot Asphalt Transport Trailer Detailed Description
The ZW Group Hot Asphalt Transport Trailer is engineered specifically for liquid asphalt transportation under high-temperature conditions. The insulated tank structure effectively reduces heat loss, preventing asphalt solidification and ensuring consistent discharge performance.
Manufactured from Q235B carbon steel with anti-stick internal treatment, the tank supports long-term operation and easy cleaning. The trailer can be configured with 1 to 7 compartments, allowing separation of different asphalt grades to meet varied project requirements.
The heavy-duty Q345B I-beam main frame and 3-axle configuration provide strong load-bearing capacity and excellent road stability. Combined with mechanical or air suspension options, the trailer delivers safe and smooth operation even on rough construction routes.
Equipped with an efficient discharge system, including optional 3″ or 4″ ball valves, dual rubber hoses, and quick-connect fittings, the trailer enables fast unloading with minimal residue, improving on-site efficiency for paving operations.
Product Video
Key Features
Insulated Asphalt Tank
Q235B carbon steel tank with thermal insulation to maintain asphalt temperature.Large Capacity Design
Standard 45,000 L capacity, expandable up to 50,000 L.Flexible Multi-Compartment Configuration
Optional 1–7 compartments for different asphalt grades.High-Efficiency Discharge System
3″ or 4″ ball valves, dual 6 m rubber hoses, and quick-connect fittings.Heavy-Duty Main Frame
Reinforced Q345B I-beam structure for long-term durability.Stable Triple-Axle Layout
13T or 16T axles for balanced load distribution.Heating System Support

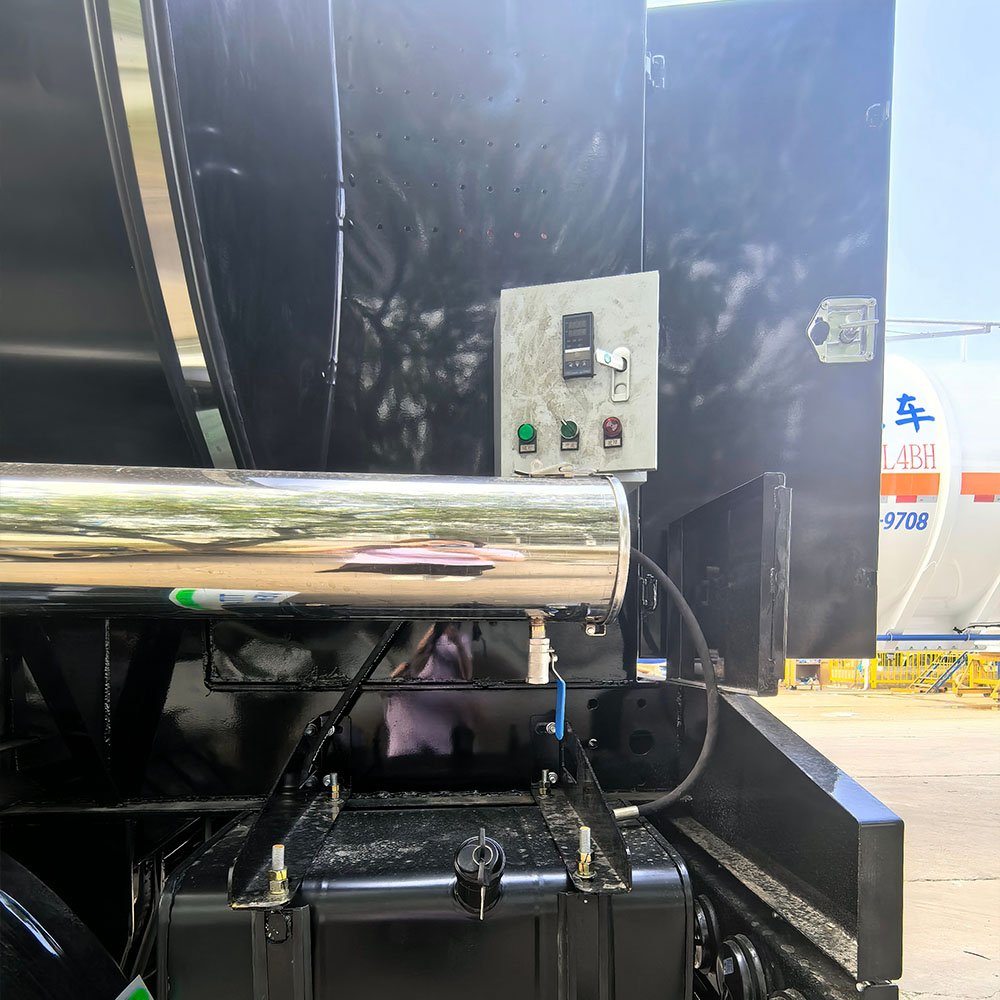

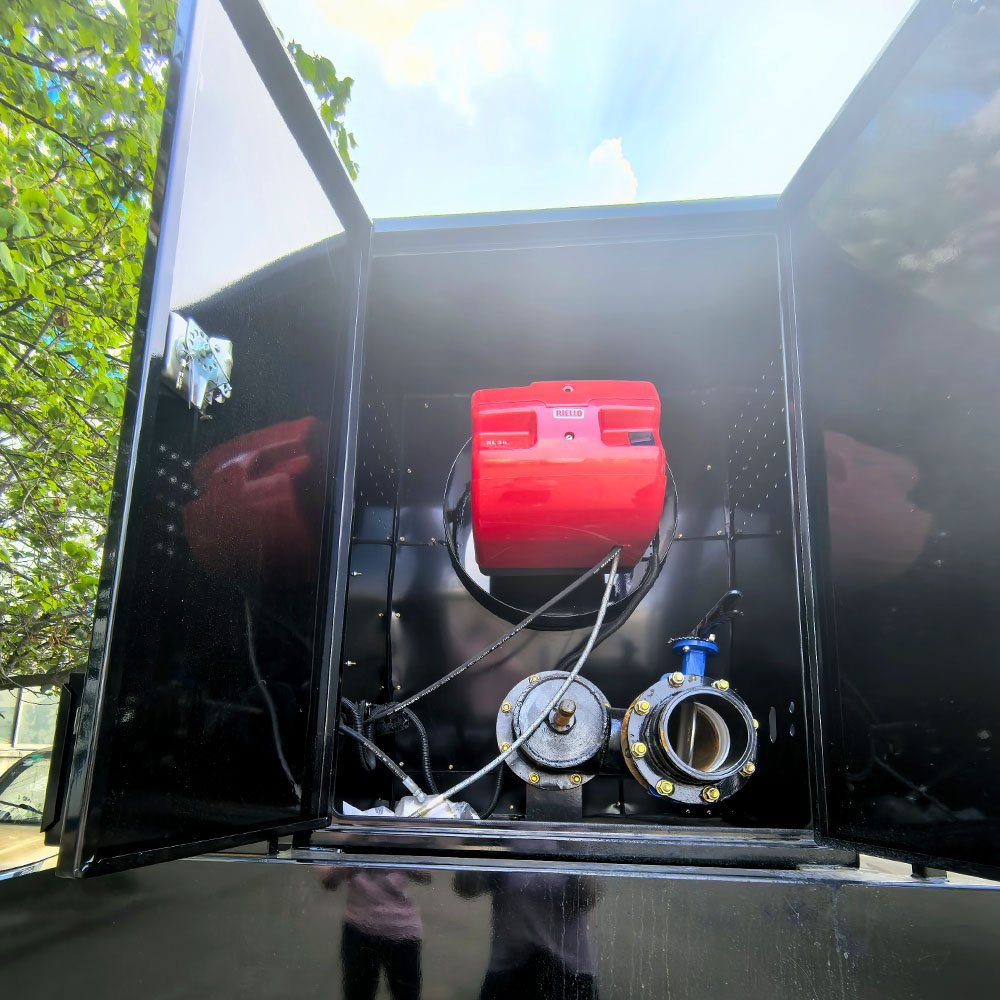

Diesel burner thermal oil system for temperature control.Suspension Options
Mechanical or air suspension for improved safety and ride comfort.
Structure Diagram of Tanker Semi Trailers
This section highlights the structural layout and essential components of ZW Group’s full range of tanker semi trailers. Whether for asphalt, chemical liquids, LPG, carbon steel, stainless steel, or aluminum alloy tanks, these visuals offer clear insight into suspension systems, discharge valves, landing gears, and other critical parts that ensure reliable performance and safety across various applications.
Specifications
| Feature | Details |
|---|---|
| Model | 3-Axle Hot Asphalt Transport Trailer |
| Tank Capacity | 45,000 L (optional 50,000 L) |
| Tank Material | Q235B Carbon Steel with Anti-stick Coating |
| Compartments | 1–7 (customizable) |
| Main Frame | Q345B I-beam |
| Axles | 3 × 13T / 16T |
| Suspension | Mechanical or Air |
| Heating System | Diesel burner, 200,000 kcal/h thermal oil |
| Discharge Valve | 3″ or 4″ ball valve (optional) |
| Discharge Hose | Dual 6 m, 4″ rubber hoses |
| Overall Dimensions | Approx. 12,370 × 2,500 × 3,750 mm |
| Application Temperature | High-temperature asphalt transport |
Application Scenarios
Highway Construction
Transport hot asphalt directly to paving sites with controlled temperature.Asphalt Plant Logistics
Efficient transfer between production facilities and job locations.Municipal Road Maintenance
Reliable asphalt supply for city and regional road repair works.Infrastructure Projects
Suitable for large-scale paving and resurfacing operations.
ZW Group Tank Body Production Workshop
ZW Group operates a modern manufacturing facility equipped with advanced processing equipment and skilled technicians. From steel plate cutting and tank rolling to welding, insulation installation, and final inspection, every production step follows strict quality control standards.
Our asphalt tanker trailers are engineered for high-temperature operation, featuring insulated carbon steel tanks, reinforced chassis structures, and efficient discharge systems. In addition to asphalt tank trailers, we manufacture a wide range of semi-trailers including liquid tankers, powder tankers, container carriers, machinery trailers, and dump trailers to meet global transport requirements.
Shipping Scenarios
ZW Group provides professional global delivery solutions for asphalt transport trailers. Each unit undergoes comprehensive inspection before shipment, covering tank integrity, insulation performance, heating system, chassis strength, and braking safety.
Depending on trailer size and destination, shipping methods include flat rack containers, bulk vessels, or Ro-Ro transport. Secure fastening and protective procedures ensure safe and efficient delivery to overseas project sites.
❓FAQ
Q1: What is the standard capacity of this asphalt trailer?
A1: Standard capacity is 45,000 liters, with optional expansion up to 50,000 liters.
Q2: Can the trailer maintain asphalt temperature during transport?
A2: Yes. The insulated tank and thermal oil heating system reduce heat loss and maintain fluidity.
Q3: Is multi-compartment configuration available?
A3: Yes. The tank can be configured with 1 to 7 compartments.
Q4: What discharge options are available?
A4: Optional 3″ or 4″ ball valves, dual rubber hoses, and quick-connect fittings.
Q5: What projects is this trailer suitable for?
A5: Highway construction, asphalt plants, municipal road maintenance, and infrastructure paving projects.
