80 Ton Lowbed Semi Trailer Detailed Description
The 80 Ton Lowbed Semi Trailer is engineered for demanding transport conditions where strength and stability are critical. Its low loading platform reduces center of gravity, improving safety when carrying heavy equipment.
The main frame is manufactured from high-strength Q550 or Q690 steel, offering excellent resistance to deformation under heavy loads. Combined with a reinforced chassis structure and mechanical suspension system, the trailer maintains stability on uneven roads.
Equipped with 4 heavy-duty axles and 16 high-performance tires, the trailer ensures balanced load distribution and dependable road performance. Spring ramps allow efficient loading and unloading of tracked or wheeled machinery.
Each trailer is built for long-term service and tested before delivery to ensure consistent performance in construction, mining, and industrial logistics operations.
Product Video
Key Features
Rated loading capacity: 80–100 tons
4-axle lowbed trailer design
High-strength Q550 / Q690 steel structure
Mechanical suspension for heavy-duty transport
16 units of 12.00R22.5 heavy-duty tires

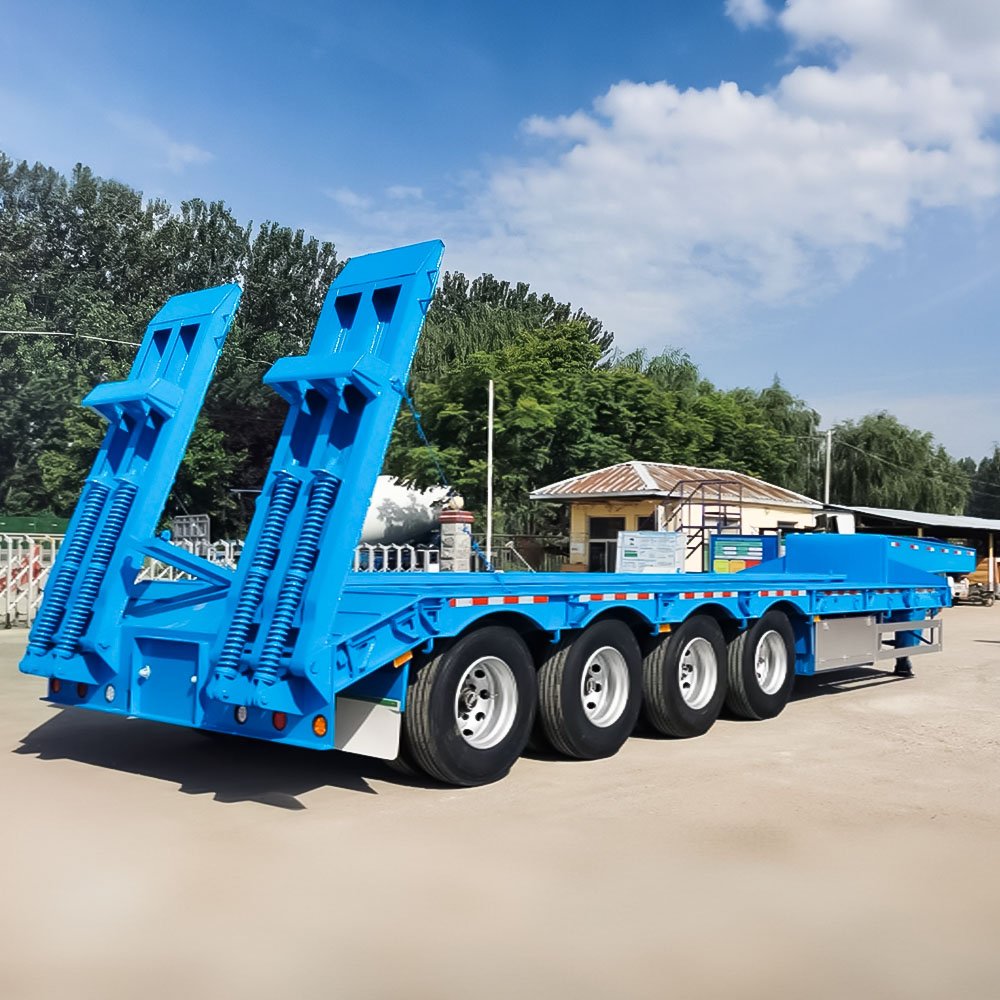

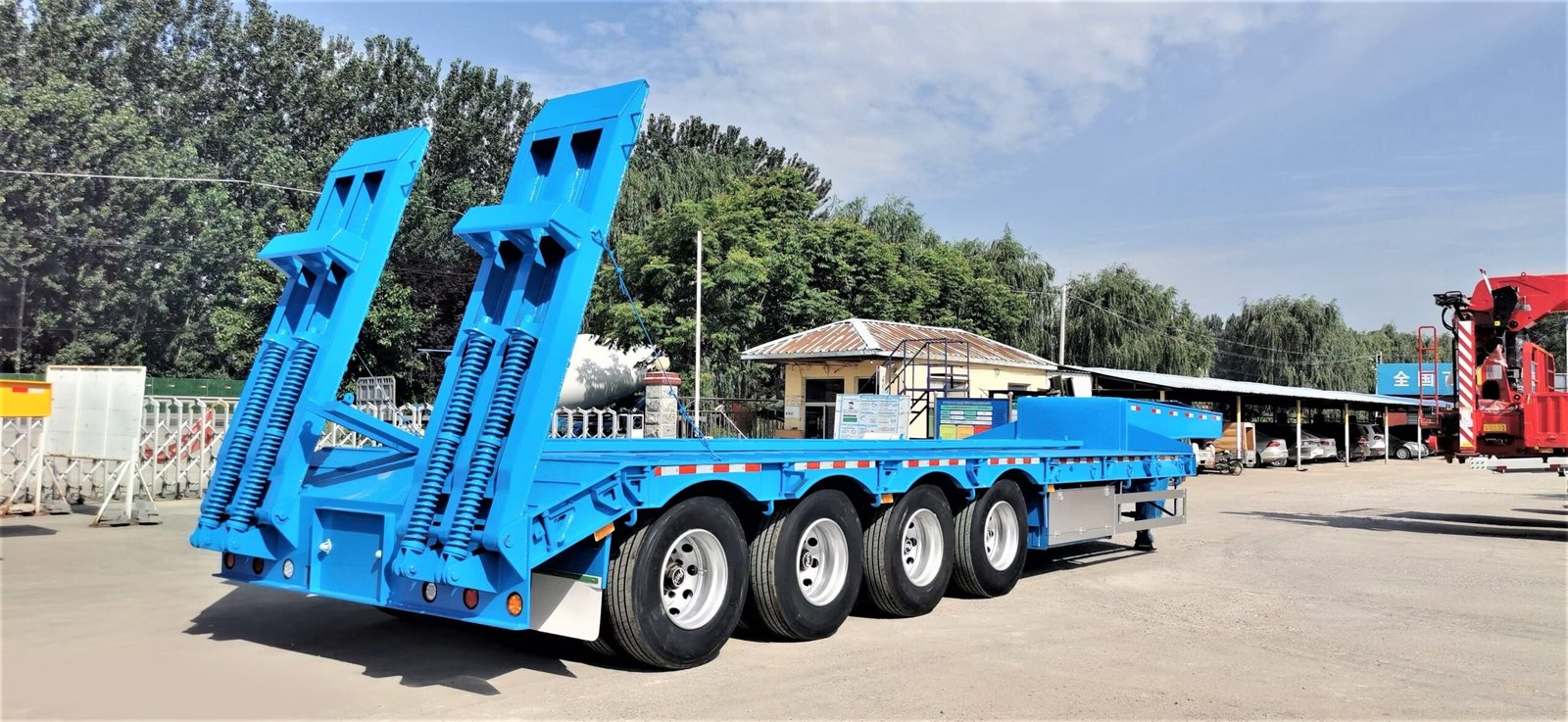

Spring ramp for equipment loading
Optional removable gooseneck structure
ABS and WABCO braking system available
Specifications
| Parameter | Details |
|---|---|
| Trailer Type | 80 Ton Lowbed Semi Trailer |
| Load Capacity | 80–100 Tons |
| Overall Dimensions | 16,800 × 3,000 × 3,400 mm |
| Axles | 4 Axles (FUWA / BPW / ZW) |
| Tires | 12.00R22.5 × 16 |
| Suspension | Mechanical Suspension |
| Ramp Type | Spring Ramp |
| Kingpin | JOST 2.0” / 3.5” |
| Landing Gear | JOST Heavy Duty |
| Platform Plate | 5 mm checkered plate |
| Brake System | Optional ABS, WABCO valve |
| Material | Q550D / Q690 steel |
Application Scenarios
The 80 Ton Lowbed Semi Trailer is widely used for heavy equipment transport across multiple industries:
Construction Sites – excavators, loaders, bulldozers, cranes
Mining Operations – mining machinery and large components
Industrial Transport – oversized equipment and steel structures
Equipment Rental Companies – reliable daily transport solution
With flexible configuration options, this lowbed trailer adapts easily to different transport conditions and project requirements.
ZW Group Lowbed Trailer Production Workshop
ZW Group manufactures lowbed semi trailers using advanced production equipment and standardized welding processes. From steel cutting and chassis assembly to final inspection, each trailer is produced under strict quality control to ensure durability, safety, and consistent performance.
In addition to 80 ton lowbed trailers, we also supply removable gooseneck trailers, hydraulic modular trailers, flatbed trailers, and other heavy transport solutions.
Shipping Scenarios
Before shipment, each lowbed semi trailer undergoes final inspection and surface protection. Depending on destination requirements, trailers can be delivered by bulk vessel or land transport, ensuring safe arrival and stable condition upon delivery.
❓FAQ
Q1: What is the maximum loading capacity?
A1: The trailer supports loads from 80 to 100 tons, depending on configuration.
Q2: Can the trailer be customized?
A2: Yes, axle layout, platform size, gooseneck type, and suspension can be customized.
Q3: What steel material is used?
A3: High-strength Q550 or Q690 steel is used for the main structure.
Q4: Which axles and tires are equipped?
A4: 4 FUWA or BPW axles with 16 units of 12.00R22.5 tires.
Q5: Is this trailer suitable for export markets?
A5: Yes, it is designed for international transport standards.
Q6: What is the delivery time?
A6: Production usually takes 20–30 days after order confirmation.
