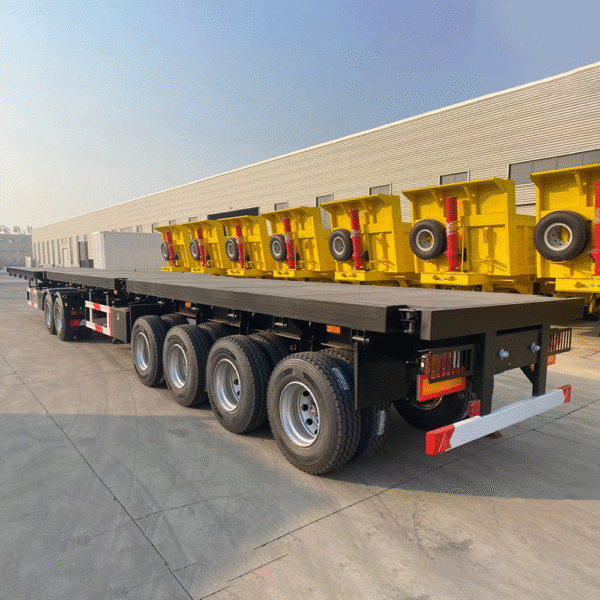

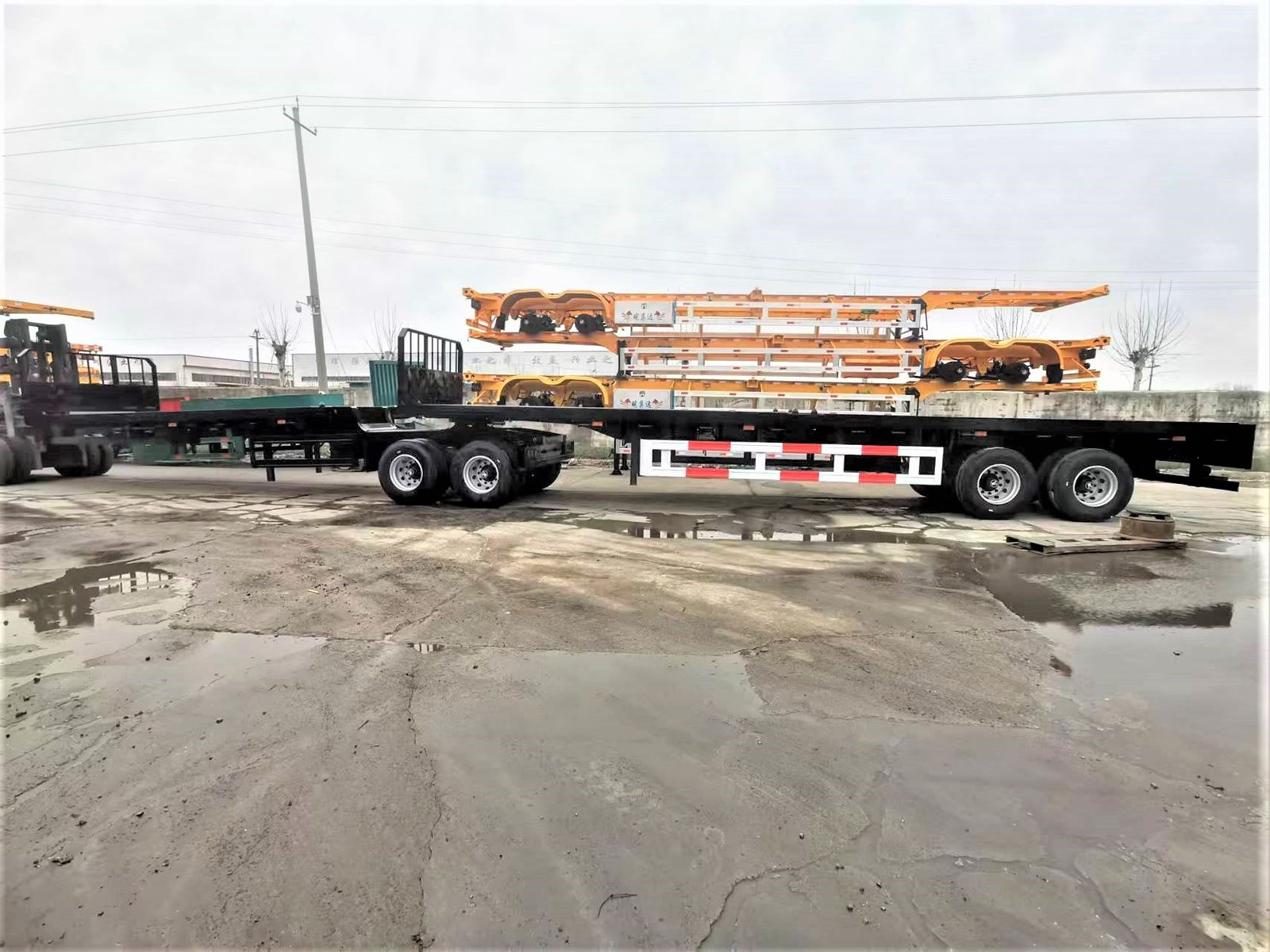

60T Superlink Flatbed Trailer Detailed Description
ZW Group 60T Superlink Flatbed Trailer is purpose-built for transporting heavy and oversized cargo with efficiency and reliability. Featuring a modular structure of 6 meters front section and 12 meters rear section, this trailer offers a total length of 18 meters, providing flexible loading space for containers, steel coils, machinery, or construction materials.
The trailer’s main beam is constructed from high-strength Q345 steel, with a 500mm height, ensuring outstanding durability under heavy loads. The carbon steel chassis, combined with air suspension and 3 heavy-duty 13-ton axles, enhances driving stability and ride comfort, even on uneven roads.
For secure cargo handling, the trailer is equipped with multiple twist locks—4 pieces on the front and 8 on the rear section—allowing safe container fixation. Its 16 tubeless 12R22.5 tires and heavy-duty 28-ton landing gear further ensure operational reliability.
From design to production, ZW Group applies strict quality control to every unit, making this 60T Superlink Flatbed Trailer a versatile choice for logistics, freight forwarding, and industrial transportation needs.
Product Video
Key Features
60-ton loading capacity, ideal for heavy and oversized cargo
Modular 6m + 12m flatbed design, total length 18 meters
High-strength Q345 steel main beam, 500mm height
Carbon steel chassis for enhanced durability
3 × 13T axles with air suspension for smooth and stable performance
16 tubeless 12R22.5 tires ensuring strong load support
Equipped with 4 front and 8 rear twist locks for secure container transport
Bolt-in kingpin and heavy-duty 28-ton landing gear
Reliable braking system with 8 double chambers and emergency relay valve
Suitable for transporting containers, steel materials, machinery, and construction equipment
Structure Details of 3 Axle Superlink Flatbed Semi Trailer

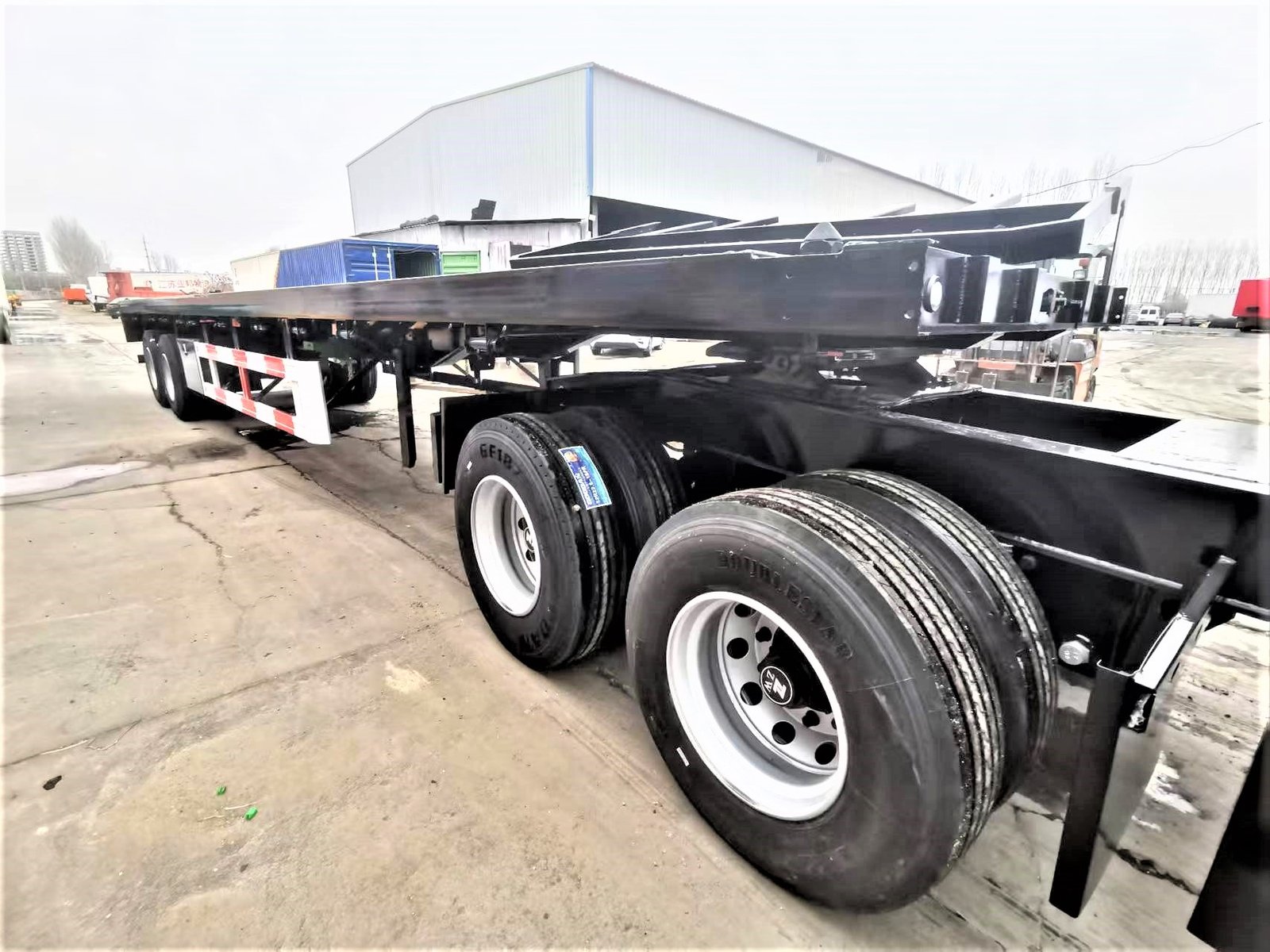

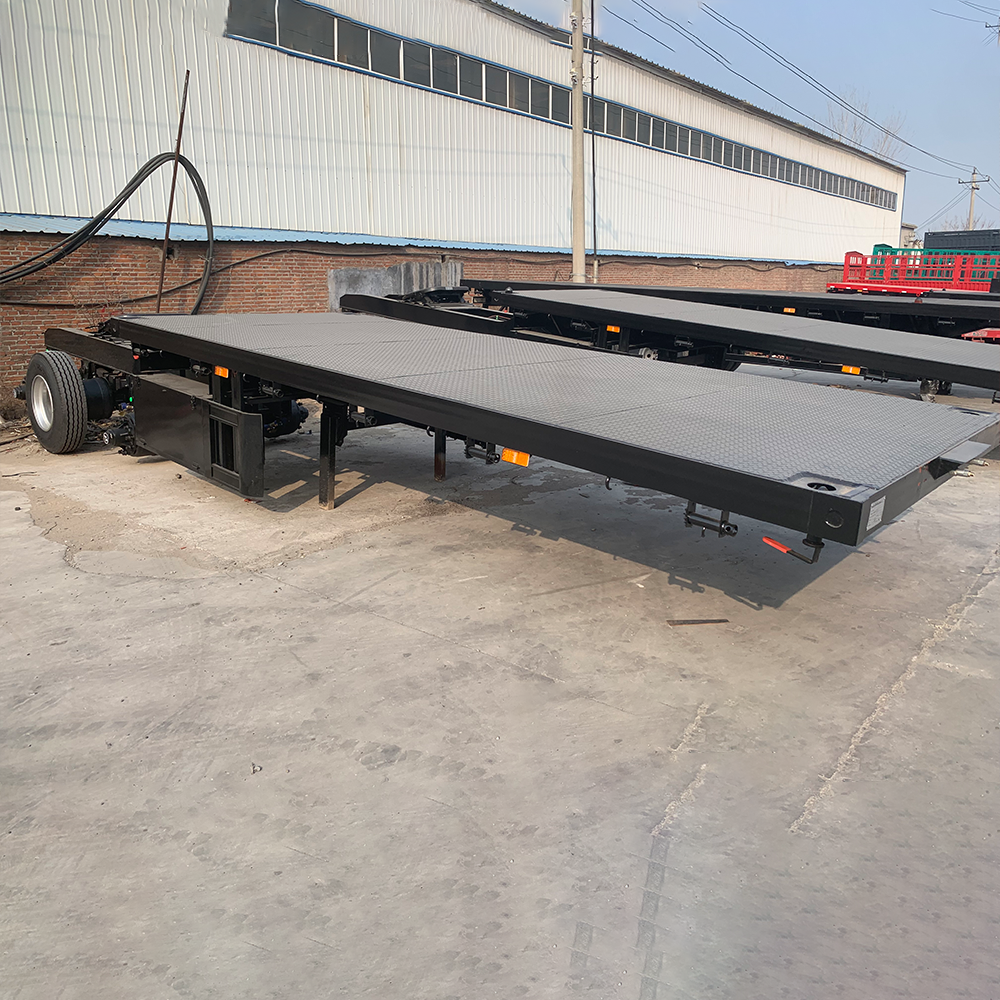

This section highlights the key structural components of ZW Group’s 3 Axle Superlink Flatbed Semi Trailer through detailed images. For example, high-quality tubeless tires ensure strong load capacity and stable road performance. The anti-slip checkered flatbed surface provides reliable cargo support. Additionally, the robust main beam, heavy-duty axles, air suspension system, and secure twist locks all contribute to the trailer’s overall strength, safety, and durability.
Specifications
| Item | Specification |
|---|---|
| Product Type | 3 Axle Superlink Flatbed Semi Trailer |
| Loading Capacity | 60 Tons |
| Overall Size | Front: 9800×2500×1500 mmRear: 12500×2500×1500 mm |
| Platform Length | 6 m (Front) + 12 m (Rear) |
| Platform Material | 3 mm-thick checkered plate |
| Main Beam | Q345 Steel, Height: 500 mmUpper: 14 mm, Middle: 8 mm, Bottom: 16 mm |
| Chassis Material | Carbon Steel |
| Axles | 3 Axles, 13T/16T, FUWA/BPW |
| Suspension | Air Suspension or Mechanical Suspension |
| Tires | 16 units, 12.00R22.5 or 315/80R22.5 |
| King Pin | JOST 2.0″ or 3.5″ |
| Twist Locks | 4 pcs (Front) + 8 pcs (Rear) |
| Landing Gear | Heavy Duty, 28 Ton |
| Braking System | WABCO, 8 Double Chambers with Emergency Relay Valve |
| Tool Box | 1 m × 0.5 m × 0.5 m |
| Spring Leaf | 100 mm × 12 mm × 12 mm |
Application Scenarios
ZW Group’s 3 Axle Superlink Flatbed Semi Trailer is designed for transporting heavy and oversized cargo efficiently and safely. It is commonly used in:
Container transport: carrying two containers in tandem, improving loading efficiency at ports and freight terminals.
Prefabricated house transport: moving modular housing units or site office cabins to construction sites.
Steel and machinery transport: hauling steel plates, structural components, large equipment, and other industrial cargo.
With its modular structure and strong load capacity, this trailer adapts to both long-distance highway logistics and industrial transport operations.
ZW Group Superlink Flatbed Trailer Production Workshop
ZW Group operates a modern manufacturing facility equipped with advanced machinery and skilled professionals, managing all production processes from steel plate cutting to chassis assembly, welding, painting, and strict quality inspections.
Our focus in this section is on the Superlink Flatbed Semi Trailer series, engineered for the efficient and secure transport of containers, oversized cargo, and heavy machinery. These trailers are designed with high-strength steel structures and customizable platform configurations to meet various logistics demands.
In addition to flatbed trailers, ZW Group also manufactures a complete range of semi-trailers for different transport needs, including car carriers, liquid and powder tankers, machinery transport, bulk cargo trailers, specialty trailers, and dump trailers.
Shipping Scenarios

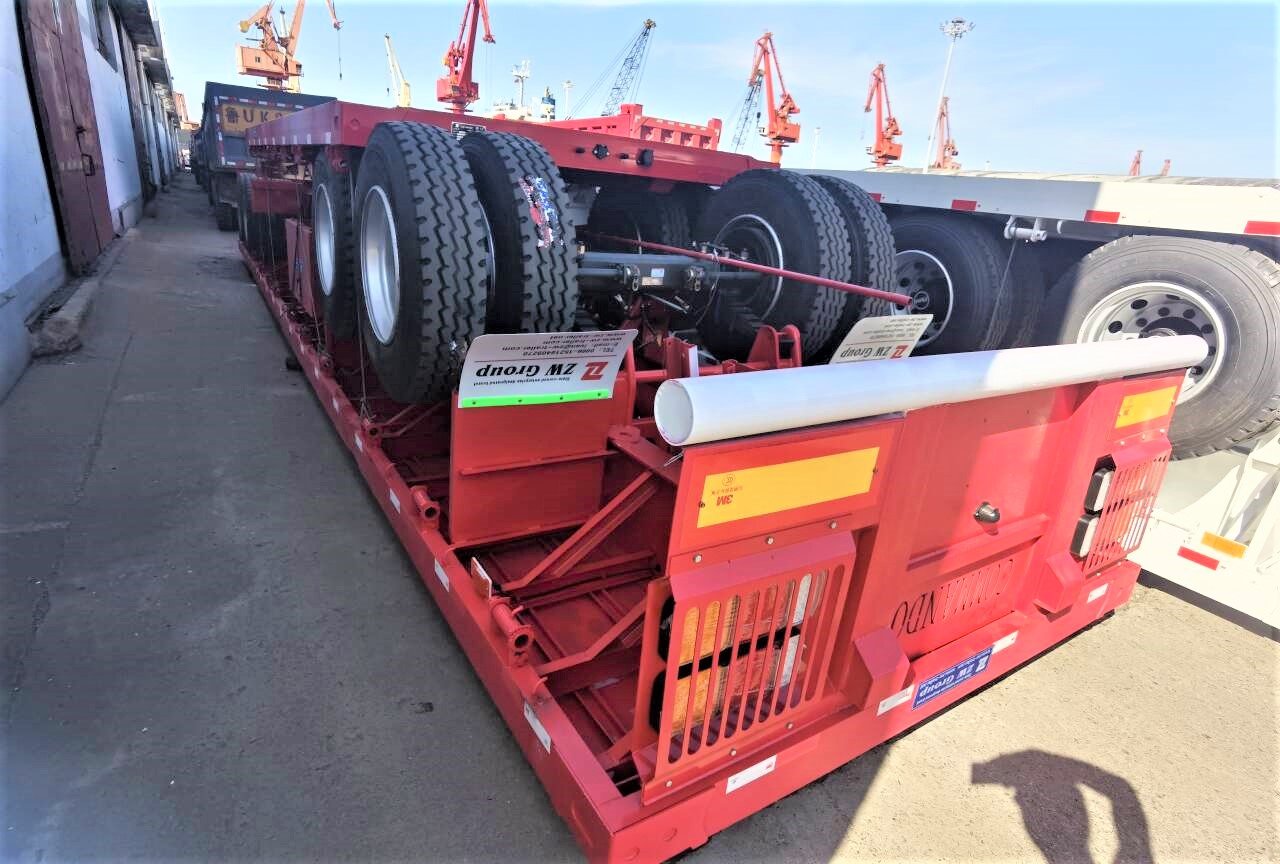

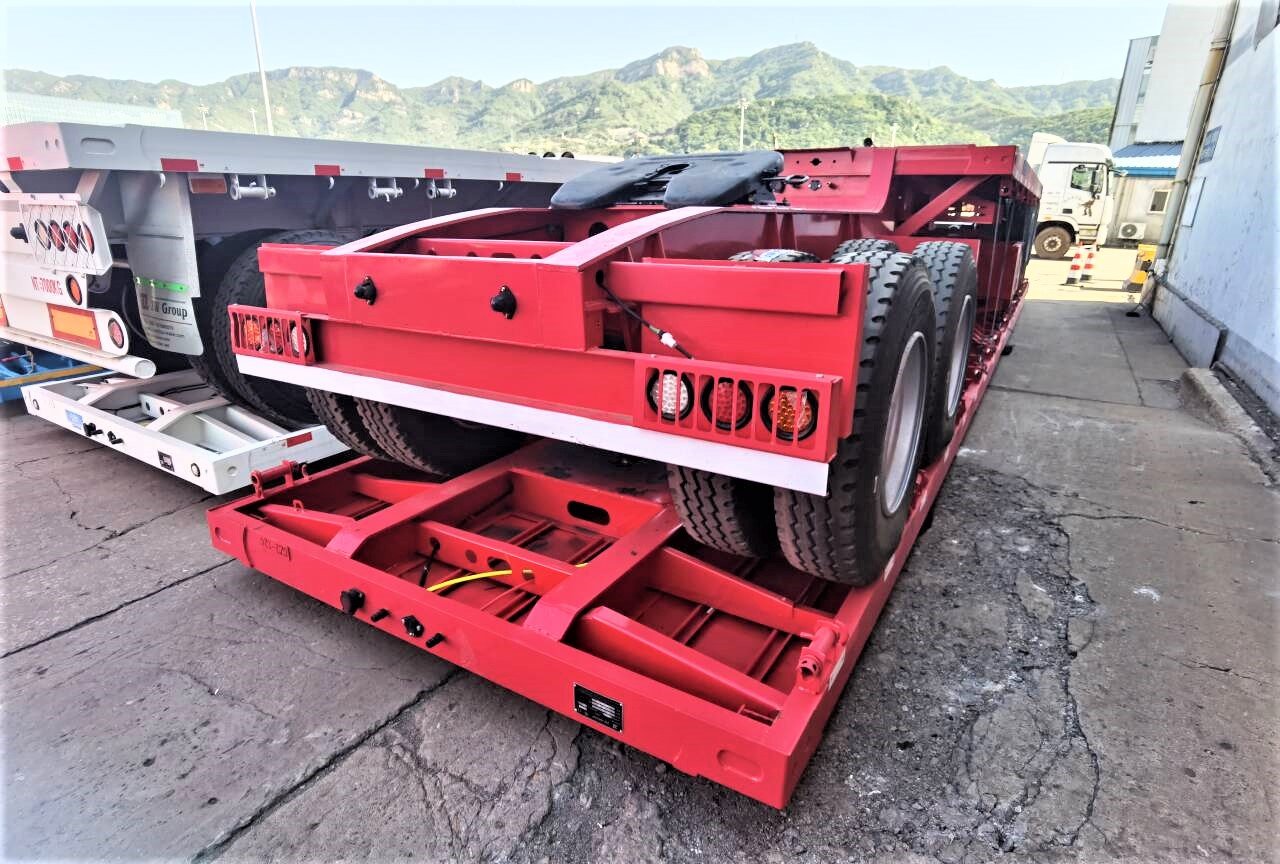

ZW Group specializes in the secure packaging, loading, and shipment of a wide range of semi-trailers, including tandem trailers such as Superlink flatbeds and other specialized models. Our experienced logistics team carefully inspects each trailer before dispatch, ensuring that all components are securely fastened and well protected.
Depending on trailer type, size, and destination, we select the most suitable transport methods, including bulk transport trucks, flat rack containers, and Roll-on/Roll-off (Ro-Ro) vessels. These measures guarantee safe, timely delivery and minimize the risk of damage during transit.
Throughout the entire shipping process, ZW Group maintains strict quality control standards, ensuring every trailer arrives in excellent condition. Our commitment to reliable transport and attentive handling has helped us build lasting partnerships with customers around the world.
❓FAQ
Q1: What is the loading capacity of the 60T Superlink Flatbed Trailer?
A:The rated loading capacity is 60 tons, suitable for transporting containers, steel, machinery, and other heavy cargo.
Q2: Can the size or configuration be customized?
A:Yes, ZW Group supports customization for length, axle number, suspension type, and twist lock positions according to your transport needs.
Q3: What transport methods are used for shipping the trailer?
A:Depending on order quantity and destination, we ship via bulk transport, flat rack container, or Ro-Ro vessel, ensuring safe and timely delivery.
Q4: Does ZW Group provide after-sales service?
A:Yes, we offer technical support, spare parts supply, and guidance for operation and maintenance after delivery.
Q5: What is the production and delivery lead time?
A:Standard delivery time is 20–30 days after receiving the deposit and confirming order details.
