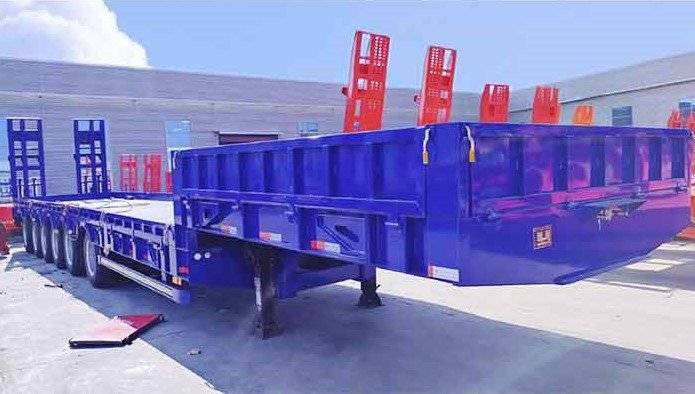

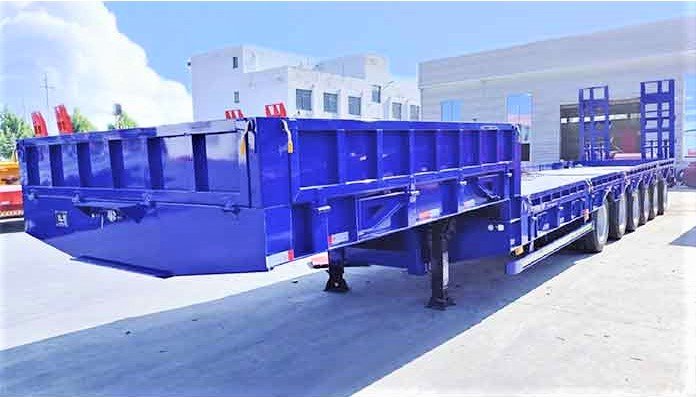

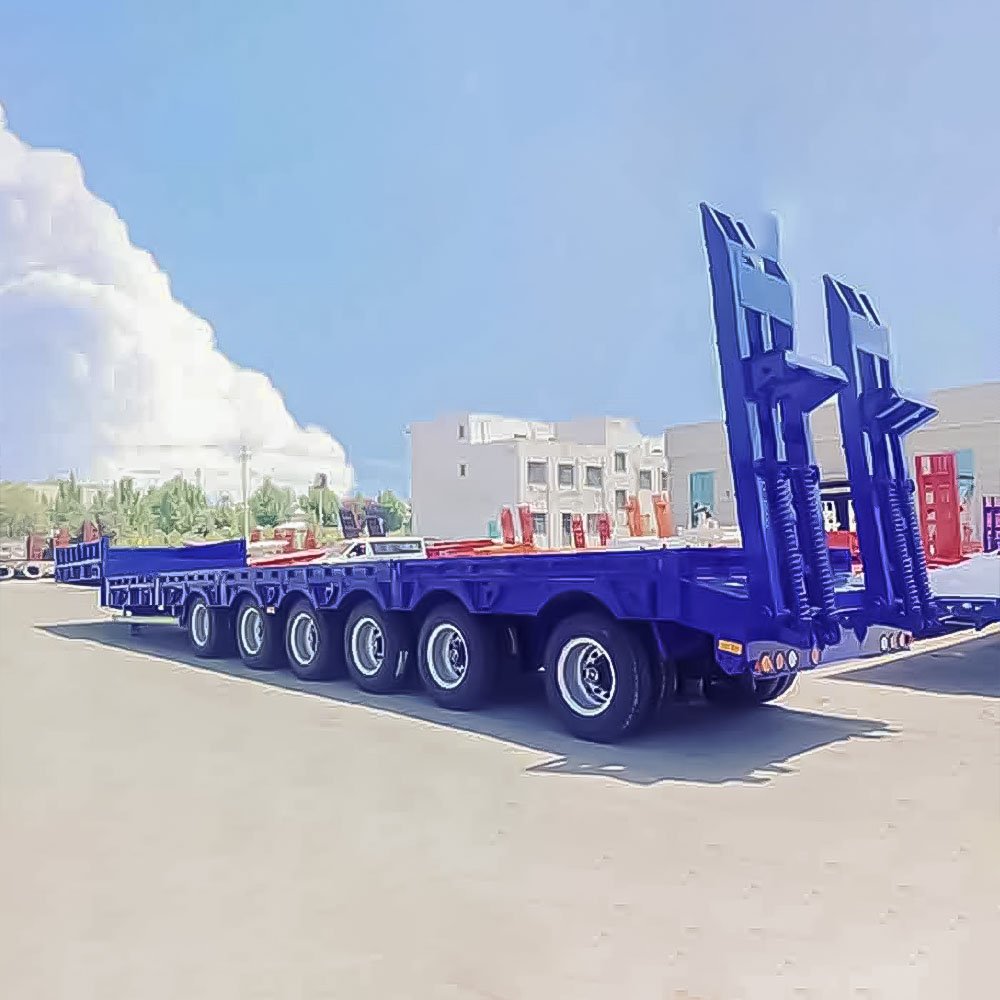

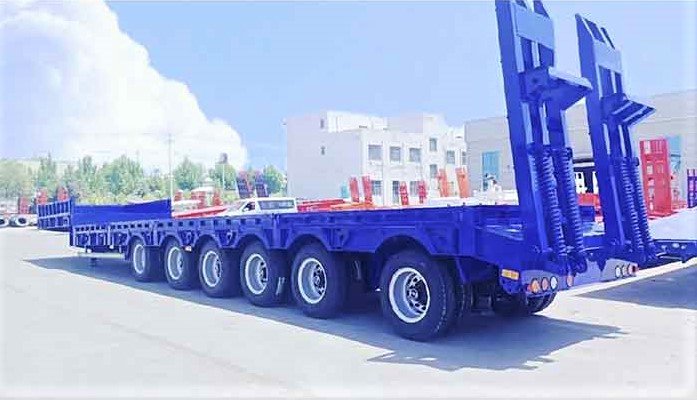

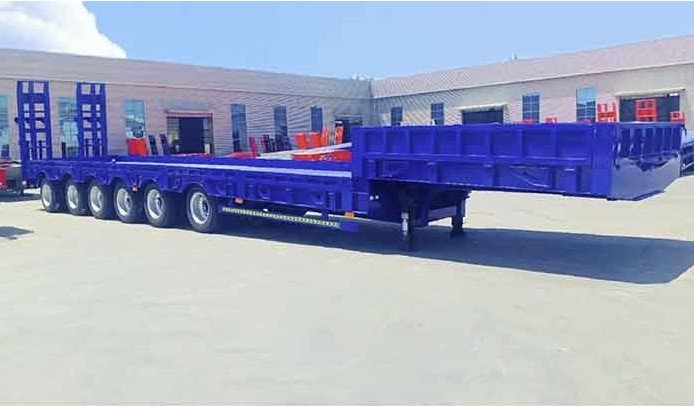

6 Axle 150 Ton Lowbed Trailer Detailed Description
Structural Integrity and Heavy Haul Design
Our 6 Axle 150 Ton Lowbed Trailer is purpose-engineered for extreme payload management. The robust structure utilizes HG60 High-strength Steel in its core beams and platform, ensuring superior resistance to bending and torsional stresses under maximum load. The 6-axle configuration is specifically designed to distribute the 150-ton capacity across the length of the chassis, maximizing road stability and minimizing stress on individual axles during transit.
Versatility and Compliance
The trailer features a heavy-duty mechanical spring suspension system, proven for its reliability and low maintenance requirements in severe operating environments. All components, including the WABCO brake system, meet rigorous international safety standards, ensuring full transportation compliance globally. Customization options, such as the removable gooseneck trailer (RGN) or varying axle spacing, further enhance operational flexibility, allowing the trailer to adapt efficiently to diverse dimensional and weight restrictions across regions. This focus on durability and adaptability guarantees long-term performance and reduces the Total Cost of Ownership (TCO).
Product Video
Key Features
6 Axles for superior load distribution and extreme stability
High-strength HG60/Q550D steel frame for maximized durability and fatigue resistance
Heavy-duty mechanical spring suspension system
Loading capacity range: 80–150 tons, suited for heavy machinery
Overall dimensions: 18,400 × 3,500 × 3,400 mm (customizable)
Kingpin: 90# for heavy-haul tractor coupling
Landing gear: JOST brand for reliability
Brake system: WABCO for enhanced braking responsiveness and safety
Optional features: removable gooseneck configuration and hydraulic modular connections
Customizable platform dimensions and axle spacing for specific haulage needs
Specifications
| Parameter | Specification |
| Model | 6 Axle 150 Ton Lowbed Semi Trailer |
| Loading Capacity | 80–150 tons |
| Overall Dimension | 18,400 × 3,500 × 3,400 mm |
| Axles | 6 axles |
| Tire | 12 units, 12R22.5 |
| Suspension | Heavy-duty mechanical spring suspension |
| Kingpin | 90# |
| Brake System | WABCO |
| Material | HG60/Q550D High-strength Steel |
| Optional Features | Removable gooseneck, hydraulic modular configuration |
Application Scenarios
Construction Projects: Transporting large cranes, excavators, bulldozers, and heavy construction equipment between sites efficiently.
Mining Operations: Safely moving mining machinery, crushers, and large vehicles over long distances across challenging, remote terrain.
Industrial Logistics: Moving oversized industrial components, transformers, and large prefabricated materials to factories or distribution centers.
Heavy Equipment Leasing: Providing reliable transport for leased equipment across vast regional networks, ensuring timely asset deployment.
ZW Group Lowbed Trailer Production Workshop
ZW Group operates a state-of-the-art manufacturing facility in Shandong, China. We equip the facility with advanced machinery and staff it with a highly skilled professional team. We manage every stage of production—from heavy-duty steel plate cutting and core chassis assembly to precision welding and thorough quality inspections. This specialized capability ensures material superiority and structural precision across all our lowbed trailers.
Our focus is on producing high-capacity trailers, including the 6 Axle 150 Ton Lowbed Trailer and hydraulic modular systems. Moreover, every unit is fully customizable to meet diverse global transport requirements, guaranteeing exceptional durability, stability, and compliance with international safety standards. Rigorous quality testing before delivery ensures reliable performance under the most demanding haulage conditions.
Shipping Scenarios
ZW Group efficiently manages the production and delivery of a wide range of trailers, including specialized lowbed and hydraulic modular units. We carefully engineer each trailer to ensure the safe and efficient transport of heavy machinery and oversized cargo. With streamlined logistics and advanced preparation, we can provide timely, reliable, and secure shipments worldwide.
The production and delivery of the 6 Axle 150 Ton Lowbed Trailer adhere to strict quality control standards. Consequently, every unit arrives safely and on schedule. This dedication to professional and dependable shipping strengthens partnerships with customers in construction, mining, and industrial logistics, providing versatile and reliable solutions for all heavy-duty transportation requirements.
❓FAQ
Q1: What is the maximum loading capacity?
A1: The trailer capacity is 80–150 tons, ideally suited for heavy machinery and oversized cargo.
Q2: Which industries primarily utilize this trailer?
A2: Primary users include construction, mining, industrial logistics, and heavy equipment leasing companies.
Q3: Can the trailer configuration be customized?
A3: Yes, customization includes axle configuration, adjustable ramps, and platform dimensions to meet specific haulage requirements.
Q4:What material is used for the frame construction?
A4: We use High-strength HG60/Q550D Steel for superior durability and maximum load capacity.
Q5:How is transport safety ensured?
A5:Safety is ensured through the heavy-duty mechanical suspension, premium tires, and the reliable WABCO braking system.
Q6: Does the trailer undergo quality checks?
A6:Yes, each lowbed trailer undergoes rigorous quality testing and final inspection before delivery.
