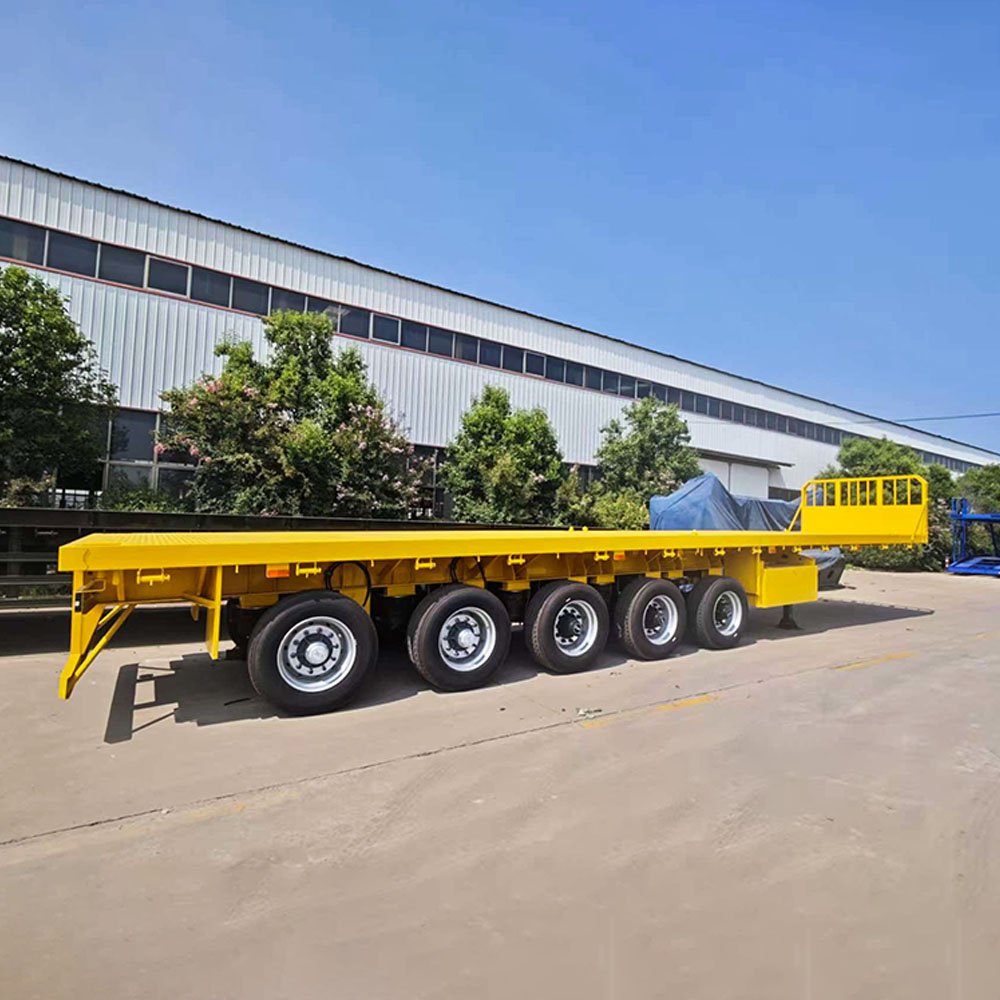

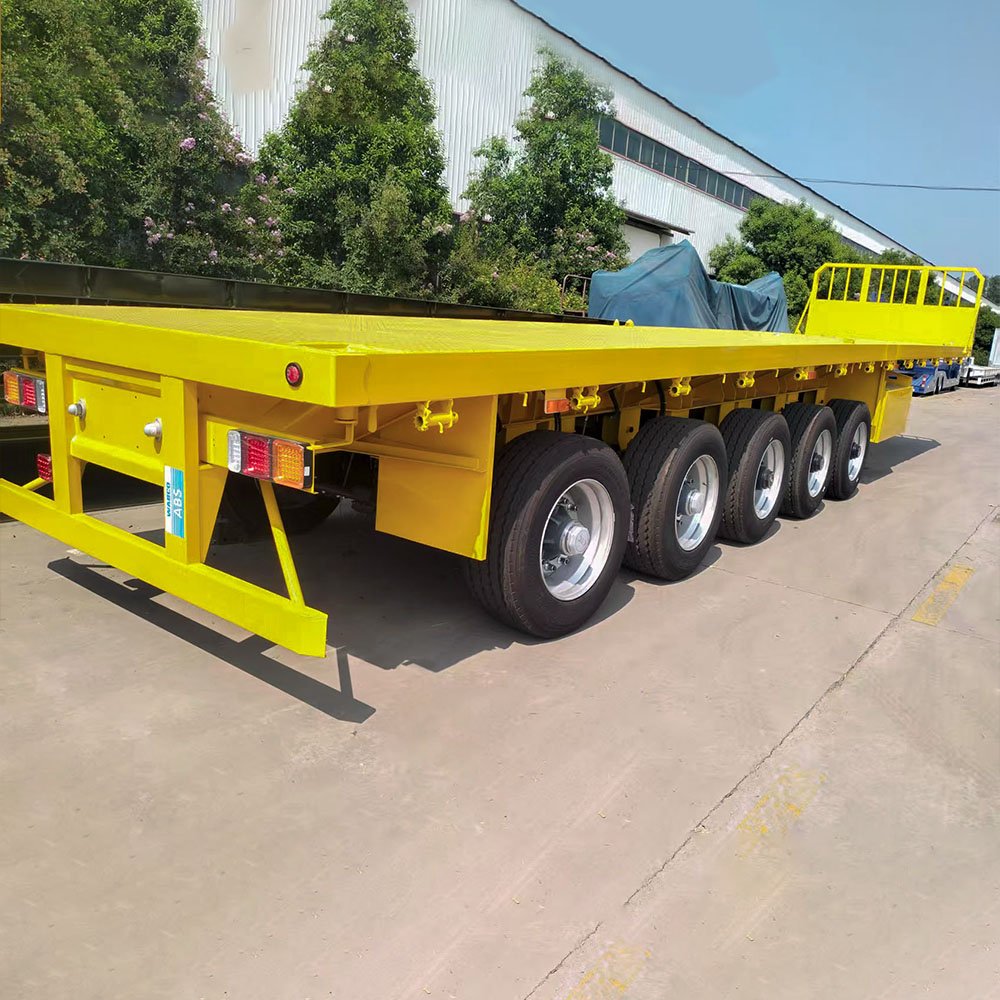

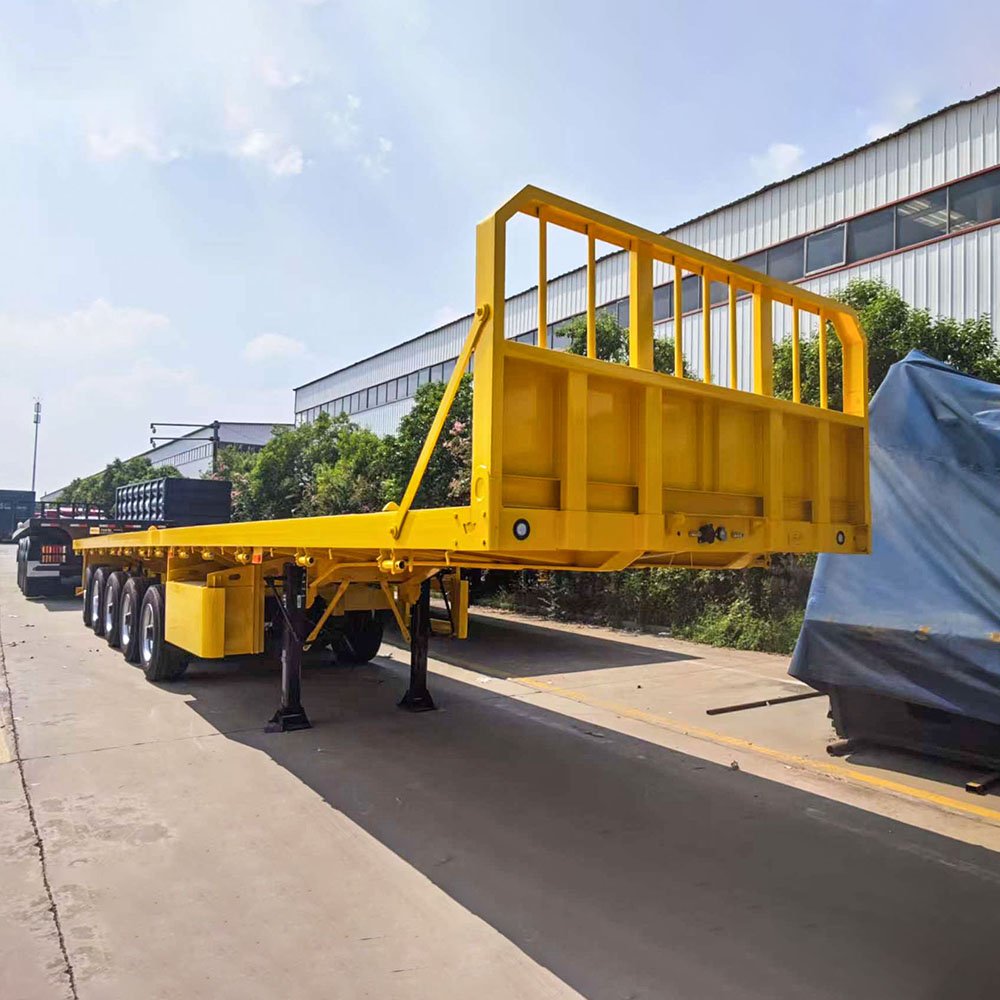

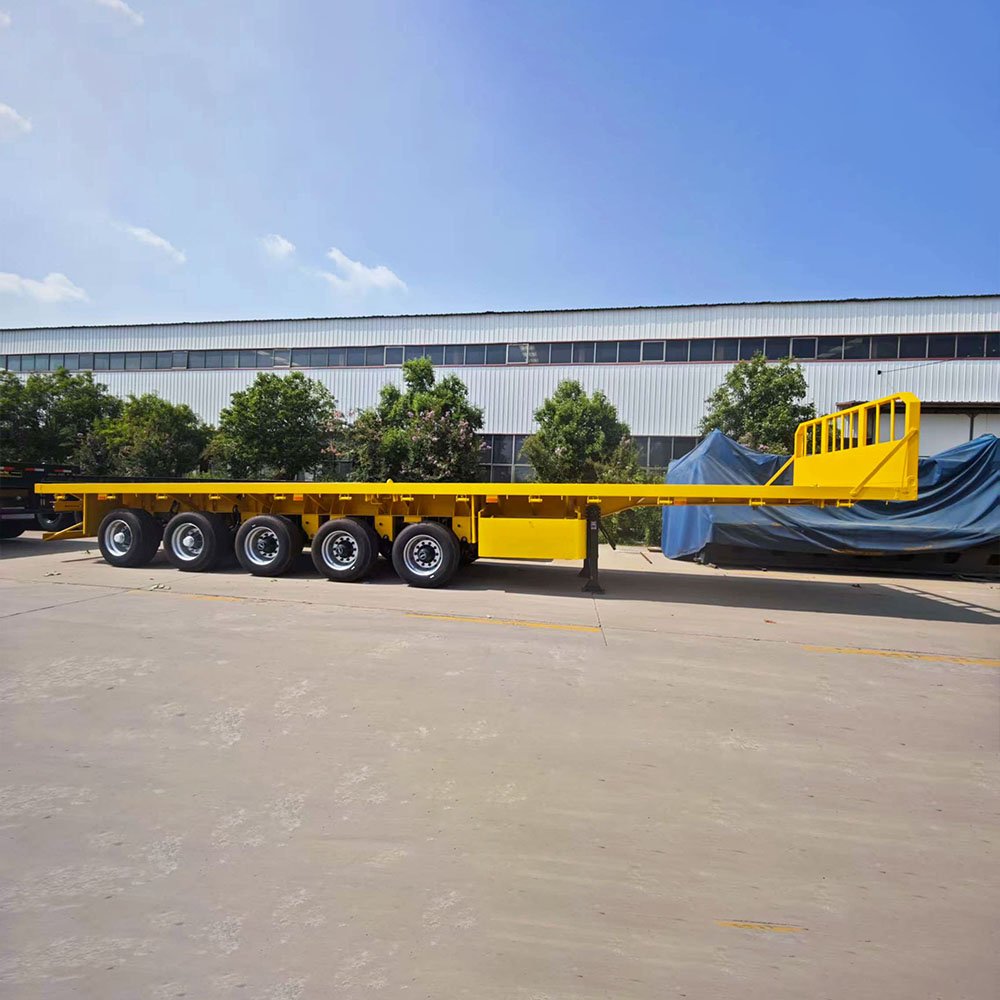

5 Axle Flatbed Semi Trailer Detailed Description
ZW Group’s 5 Axle Flatbed Semi Trailer is expertly designed for diverse heavy-duty transport needs, including flatbed trailer semi applications and intermodal shipping. Crafted from high-strength Q345B steel beams and side frames, the semi flatbed trailer frame offers superior torsion resistance and structural durability. Advanced robotic welding ensures precision and quality throughout the chassis.
Equipped with reliable FUWA or BPW axles, each rated at 13 tons, combined with durable 12R22.5 tires mounted on steel rims, the trailer maintains excellent stability and rolling efficiency. The mechanical multi-leaf spring suspension provides rugged support across various terrains, with optional upgrades to air suspension for enhanced ride comfort.
The flatbed semi truck trailer features 12 ISO twist locks, enabling secure transport of one 40ft or two 20ft containers. It suits a wide range of cargo types, from heavy machinery to general freight. Additional customization options include axle count, suspension type, and trailer dimensions.
This trailer integrates a dual-line pneumatic air brake system with optional ABS, LED lighting, and a standard 28-ton landing gear. Its protective coating system includes anticorrosive primer and multiple paint layers, ensuring long-lasting resistance to weather and wear.
Product Video
Key Features
Robust Construction: Made with high-strength Q345B steel beams and side frames, fully welded for excellent torsion and bending resistance.
Reliable Suspension: Equipped with mechanical multi-leaf springs (10–13 layers), optional air suspension available for smoother rides and load leveling.
Heavy-Duty Axles and Tires: FUWA or BPW branded axles rated around 13 tons each, paired with durable 12R22.5 or 11.00R20 heavy-duty tires for superior stability and long service life.
Advanced Braking System: Dual-line pneumatic air brakes with optional ABS for enhanced safety during heavy loads and long-distance travel.
ISO Container Compatibility: Fitted with 12 ISO twist locks, supporting one 40ft container or two 20ft containers, ensuring fast and secure container transport.
Corrosion Resistance: Shot-blasted chassis coated with anticorrosive primer and two layers of finish paint to withstand harsh environments and extend trailer life.
Customization Options: Flexible configurations available including axle counts, suspension types, colors, branding, and packaging methods tailored to customer needs.
Specifications
| Item | Details |
|---|---|
| Trailer Model | 5 Axle Flatbed Semi Trailer |
| Overall Dimension | 12,500 mm (L) × 2,500 mm (W) × 1,550 mm (H) |
| Tare Weight (kg) | 7,500 |
| Loading Capacity (kg) | 60,000 |
| Axles | 5 Axles, 13 Ton per Axle (FUWA/BPW) |
| Suspension System | Mechanical multi-leaf spring (10–13 layers), optional air suspension |
| Main Beam Height | 500 mm |
| Platform Plate Thickness | 3 mm Diamond Plate |
| Tire Type & Quantity | 12 pcs, 12R22.5 Heavy Duty Tires |
| Wheel Rims | 9.0 × 22.5 Steel Rims |
| Brake System | Dual-line Pneumatic Brakes, optional ABS |
| Traction Pin Size | 50 mm or 90 mm |
| Spare Tire Carrier | 1 Piece |
| Tool Box | 1 Standard |

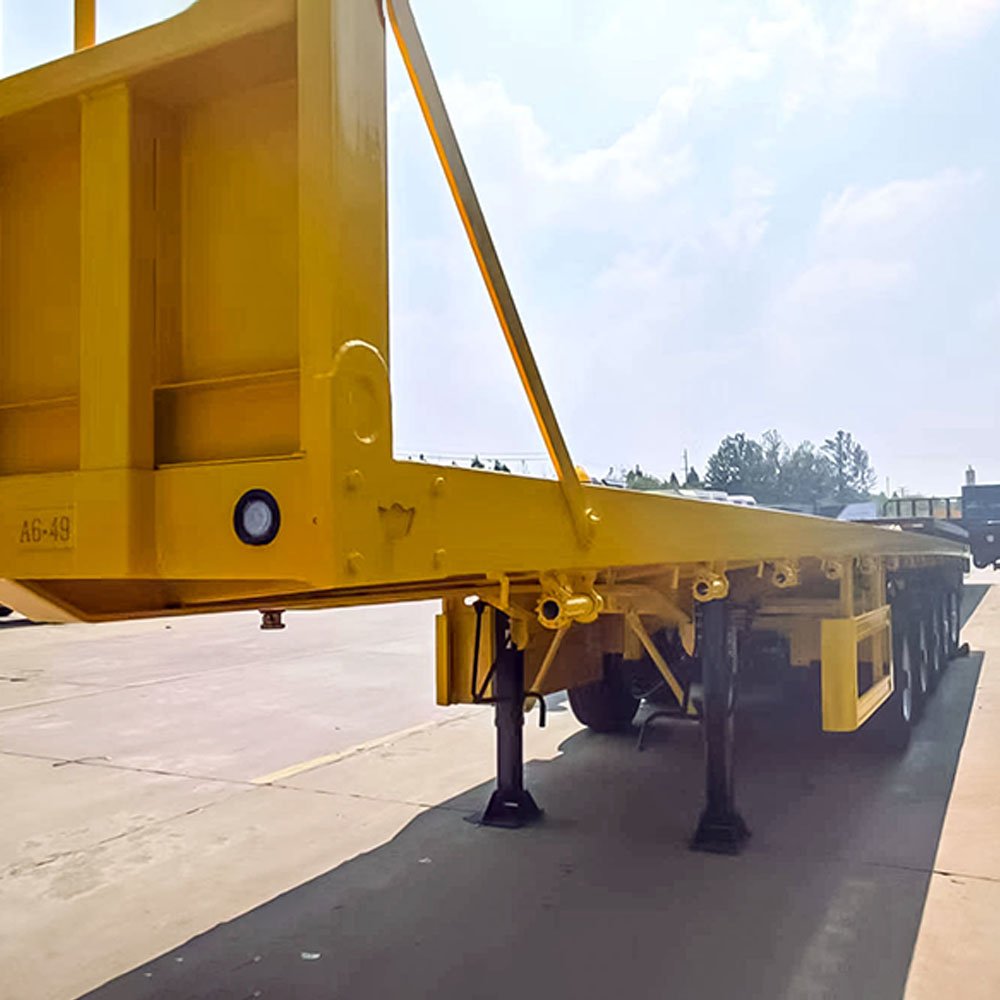

| Landing Gear | Standard 28 Ton Two-Speed |
| Lighting System | 24V LED Lighting |
Application Scenarios
Flatbed semi trailer for sale in logistics and freight transport
Semi truck with flatbed trailer for heavy equipment hauling
Semi trailer flatbed used in construction and industrial cargo
Lowbed semi trailer and removable gooseneck trailer for specialized loads
Hydraulic modular trailer operations for oversized and heavy machinery
ZW Group Manufacturing Base
ZW Group operates a state-of-the-art manufacturing facility equipped with advanced machinery and a skilled professional team. We manage every production stage—from steel plate cutting and rolling to precision welding and strict quality inspections—to ensure top-quality flatbed semi trailers. Our factory specializes in producing a wide range of semi-trailers, including flatbed trailers, container transport flatbeds, lowbed semi trailers, removable gooseneck trailers, and hydraulic modular trailers.
While our current focus highlights durable 5 axle flatbed semi trailers designed for heavy-duty cargo hauling and intermodal logistics, this represents just part of our extensive product lineup. Each flatbed semi trailer is engineered for superior strength, stability, and safety, fully compliant with international standards such as ISO9001, CE, DOT, and CCC. Our expertise covers semi flatbed trailers, semi truck flatbed trailers, lowbed semi trailers, and modular hydraulic trailers—providing reliable solutions for global logistics, heavy machinery transport, and freight shipping industries.
Shipping Scenarios
ZW Group places strong emphasis on secure packaging, loading, and shipment of our 5 Axle Flatbed Semi Trailers. Each trailer undergoes thorough inspection by our experienced logistics team to ensure that all critical components—such as the reinforced main chassis, FUWA/BPW axles, mechanical suspension, braking system, and safety accessories—are properly secured and fully protected during transport.
We adhere to strict shipping protocols and carefully select the most suitable transport methods—including bulk trucks, flat rack containers, and Roll-on/Roll-off (Ro-Ro) vessels—based on the trailer’s size, weight, and destination. These measures guarantee safe, damage-free, and timely delivery to customers worldwide.
By combining professional handling with rigorous quality checks throughout packaging and shipment, ZW Group delivers reliable logistics solutions for industries such as heavy machinery transport, intermodal logistics, and general freight hauling. This commitment helps build strong, long-term partnerships with clients across global markets.
❓FAQ
Q1: What is the load capacity of the 5 Axle Flatbed Semi Trailer?
A1: It supports up to 60 tons, suitable for heavy cargo like containers and machinery.
Q2: What suspension system does it use?
A2: Mechanical multi-leaf spring suspension, with optional air suspension available.
Q3: What are the typical tire specifications?
A3: Equipped with 12R22.5 heavy-duty tires on steel rims for durability and stability.
Q4: How long is the delivery time?
A4: Usually 20-30 days after order confirmation.
Q5: Does it comply with international standards?
A5: Yes, certified with ISO9001, CE, DOT, and CCC.
Why Choose ZW Group?
Over 10 years of international experience manufacturing and exporting semi-trailers to 50+ countries worldwide.
Modern factory covering 50,000m², staffed by a skilled team of over 200 professionals and supporting personnel.
Strict quality control to ensure durable and high-performance trailers you can rely on.
Dedicated after-sales service with quick response to support your operations smoothly.
