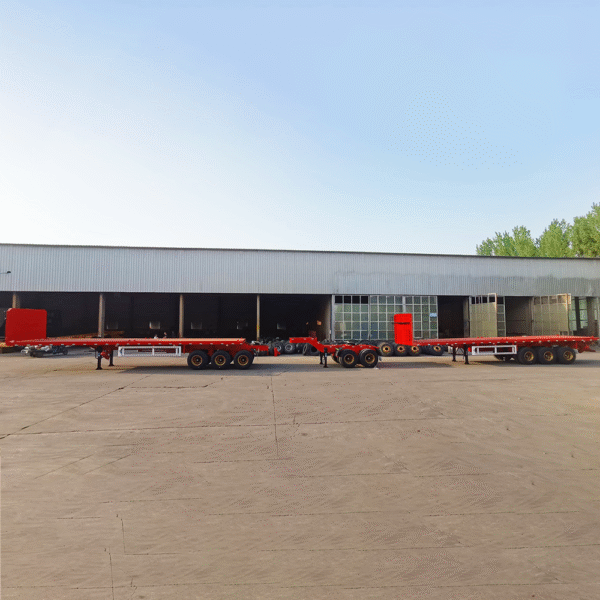

3 Axle Superlink Flatbed Semi Trailer Detailed Description
ZW Group’s 3 Axle Superlink Flatbed Semi Trailer is expertly designed for transporting 20ft, 40ft, and 80ft containers as well as oversized cargo. The trailer features a modular platform divided into front and rear sections, made from high-strength Q345B steel main beams with 16–18mm Q235 steel side beams, ensuring superior durability and structural integrity.
Moreover, it is equipped with FUWA or BPW 13T/16T axles and offers mechanical or air suspension options to adapt to various road conditions. The 16 heavy-duty tires (12.00R22.5 or 315/80R22.5) provide excellent traction and stability.
For safety, the trailer uses WABCO spring brake chambers and offers flexible king pin options from JOST (2.0 or 3.5 inch). The 3mm-thick checkered plate platform is customizable to fit specific cargo requirements. Additionally, a convenient toolbox and optional hydraulic or manual ramps make loading and unloading easier.
With a monthly supply capacity of 300 sets and delivery within 20–30 days, ZW Group guarantees reliable quality and timely availability. Therefore, this trailer is an ideal choice for heavy-duty transport of containers, machinery, and oversized loads.
Product Video
Key Features
Modular two-part platform: Front (9800×2500×1500 mm) and Rear (12500×2500×1500 mm)
Heavy-duty Q345B steel main beam with 16–18mm Q235 steel side beams
FUWA or BPW 13T/16T axles for excellent load capacity
Mechanical or air suspension options for versatile road adaptability
16 units of 12.00R22.5 or 315/80R22.5 heavy-duty tires
WABCO RE 6 T30/30+T30 spring brake chambers for enhanced safety
JOST king pin options: 2.0 inch or 3.5 inch for flexible coupling
Customizable 3mm-thick checkered plate platform
Toolbox (1m × 0.5m × 0.5m) included for tool storage
Optional hydraulic or manual ramps for easy loading/unloading
Robust spring leaf dimensions: 100mm × 12mm × 12mm
Delivery time: 20–30 days, Monthly supply: 300 sets
Structure Diagram of 3 Axle Superlink Flatbed Semi Trailer
This section highlights ZW Group’s 3 Axle Superlink Flatbed Semi Trailer, engineered for reliable transport of containers, oversized, and heavy cargo. The sturdy FUWA or BPW axles and heavy-duty tires provide strong load support and smooth mobility across various terrains. Additionally, the modular platform design allows flexibility for different cargo sizes. Furthermore, the reinforced main beam and side beams ensure excellent structural integrity under heavy loads. Meanwhile, the mechanical or air suspension system delivers stable and comfortable operation. Overall, our trailer meets global quality standards and is built to perform efficiently in demanding transport environments.
Specifications
| Item | Specification |
|---|---|
| Front Trailer Size | 9800 × 2500 × 1500 mm |
| Rear Trailer Size | 12500 × 2500 × 1500 mm |
| Main Beam | Height 500 mm, Upper Plate 14 mm, Middle Plate 8 mm, Bottom Plate 16 mm (Q345B Steel) |
| Side Beam | 16 mm or 18 mm Steel Channel (Q235 Steel) |
| Platform | 3 mm-thick Checkered Plate (Customizable) |
| Axles | 3 Axles, 13T/16T, FUWA or BPW Brand |
| Suspension | Mechanical Suspension or Air Suspension |
| Tires | 16 Units, 12.00R22.5 or 315/80R22.5 |
| King Pin | JOST 2.0 inch or 3.5 inch |
| Brake Chamber | WABCO RE 6 T30/30 + T30 Spring Brake Chamber |
| Spring Leaf | 100 mm × 12 mm × 12 mm |
| Tool Box | 1 m × 0.5 m × 0.5 m |
| Supply Capacity | 300 Sets/Month |
| Delivery Time | 20–30 Days |
Application Scenarios
The ZW Group 3 Axle Superlink Flatbed Semi Trailer is widely used in various heavy-duty transport applications, including:
Container Transport: Suitable for 20ft, 40ft, and 80ft shipping containers in logistics and port operations.
Oversized Cargo Hauling: Ideal for moving large machinery, construction equipment, and prefabricated building materials.
Industrial Logistics: Used in factories, steel plants, and warehouses for bulk goods and heavy material transfer.
Mining and Construction: Applicable for transporting mining equipment, aggregates, and oversized construction components.
Long-Distance Freight: Ensures stable and safe transportation of heavy loads over long distances across highways and rough terrains.
ZW Group Superlink Flatbed Trailer Production Workshop
ZW Group operates a modern manufacturing facility equipped with advanced machinery and skilled professionals, managing all production processes from steel plate cutting to chassis assembly, welding, painting, and strict quality inspections.
Our focus in this section is on the Superlink Flatbed Semi Trailer series, engineered for the efficient and secure transport of containers, oversized cargo, and heavy machinery. These trailers are designed with high-strength steel structures and customizable platform configurations to meet various logistics demands.
In addition to flatbed trailers, ZW Group also manufactures a complete range of semi-trailers for different transport needs, including car carriers, liquid and powder tankers, machinery transport, bulk cargo trailers, specialty trailers, and dump trailers.
Shipping Scenarios
ZW Group specializes in the secure packaging, loading, and shipment of a wide range of semi-trailers, including tandem trailers such as Superlink flatbeds and other specialized models. Our experienced logistics team carefully inspects each trailer before dispatch, ensuring that all components are securely fastened and well protected.
Depending on trailer type, size, and destination, we select the most suitable transport methods, including bulk transport trucks, flat rack containers, and Roll-on/Roll-off (Ro-Ro) vessels. These measures guarantee safe, timely delivery and minimize the risk of damage during transit.
Throughout the entire shipping process, ZW Group maintains strict quality control standards, ensuring every trailer arrives in excellent condition. Our commitment to reliable transport and attentive handling has helped us build lasting partnerships with customers around the world.
❓FAQ
Q1: What sizes are available?
A:Front: 9800×2500×1500 mm, Rear: 12500×2500×1500 mm. Platform thickness, axles, and suspension can also be customized.
Q2: What is the load capacity?
A:Generally 40–80 tons, depending on axle setup and suspension type.
Q3: Can the platform or structure be customized?
A:Yes. Platform thickness, side walls, toolbox, and ramps can all be adjusted to your needs.
Q4: Which axles and suspension options do you offer?
A:FUWA or BPW axles, 13T/16T, with mechanical or air suspension systems.
Q5: How long is production and delivery?
A:Production usually takes 20–30 days. Shipping time depends on destination.
Q6: How is shipping quality ensured?
A:Each trailer is inspected, packaged securely, and loaded using protective measures to avoid damage.
Q7: Do you offer after-sales service?
A:Yes, including spare parts, technical support, and installation guidance if required.
