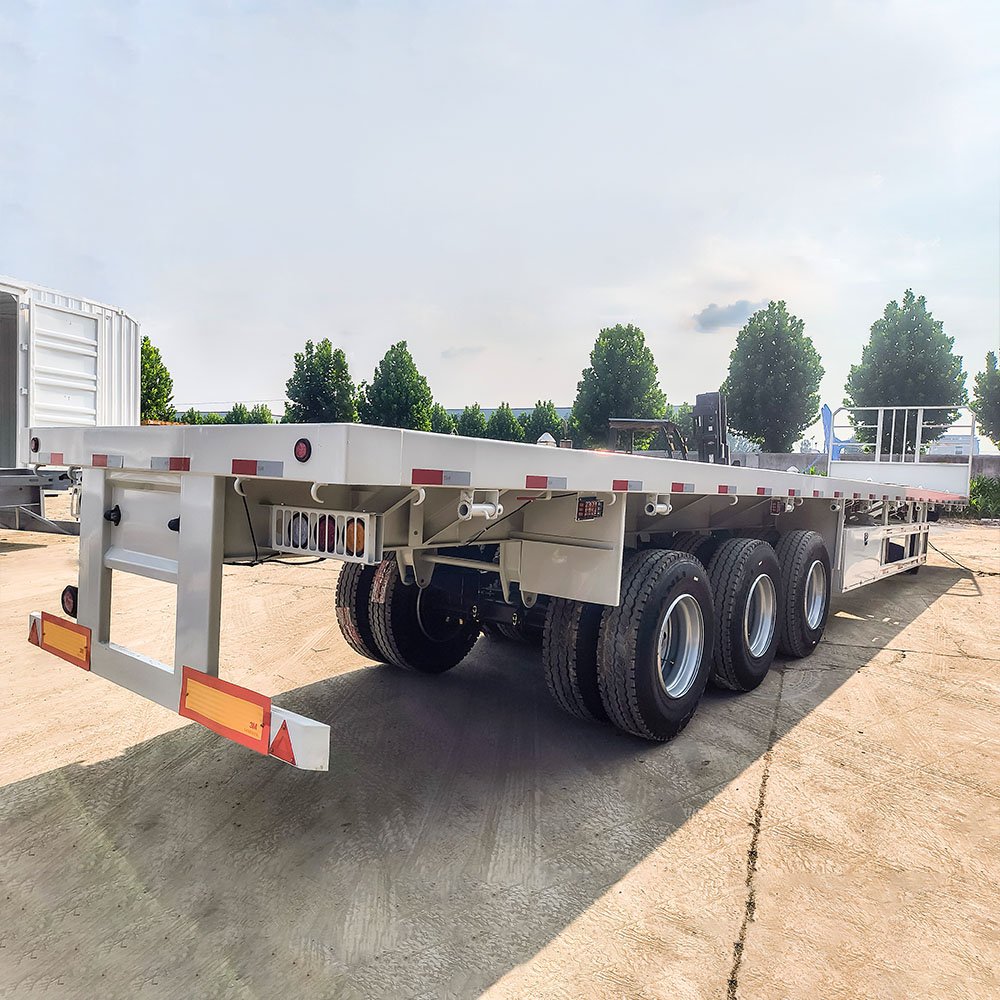

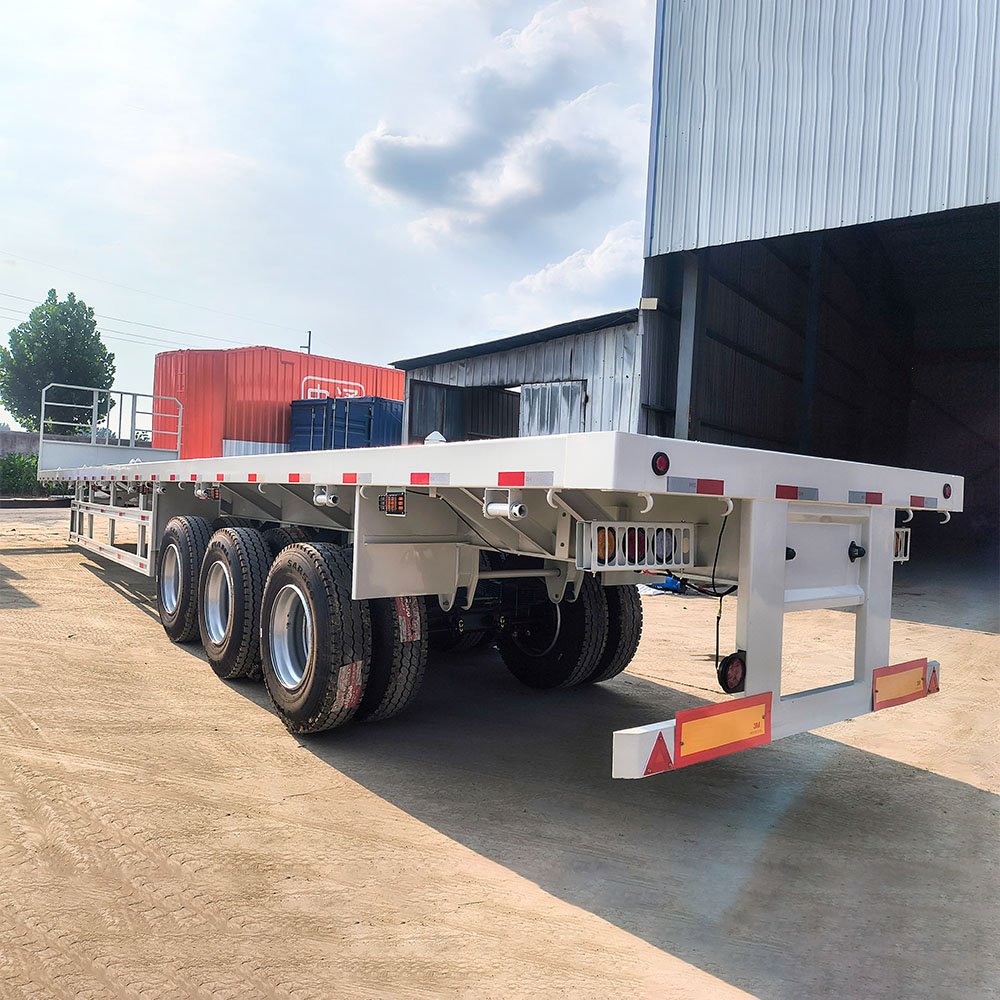

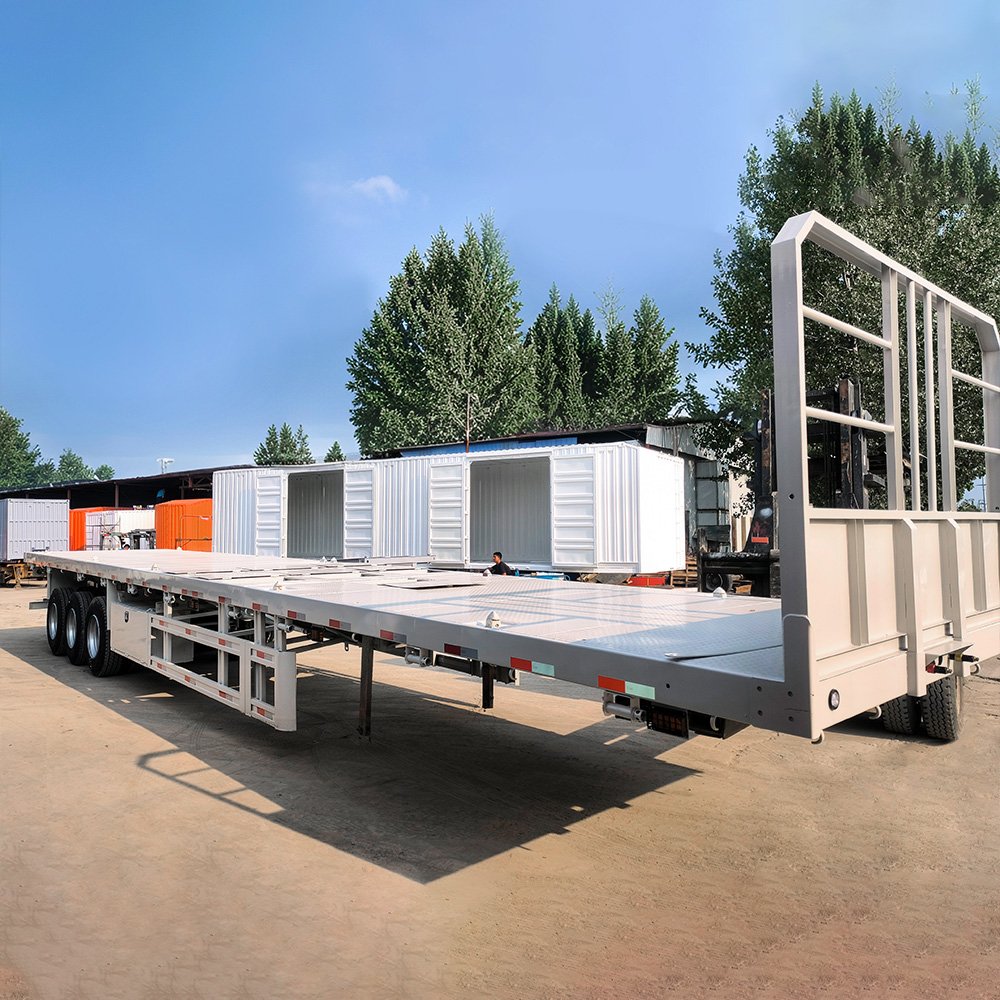

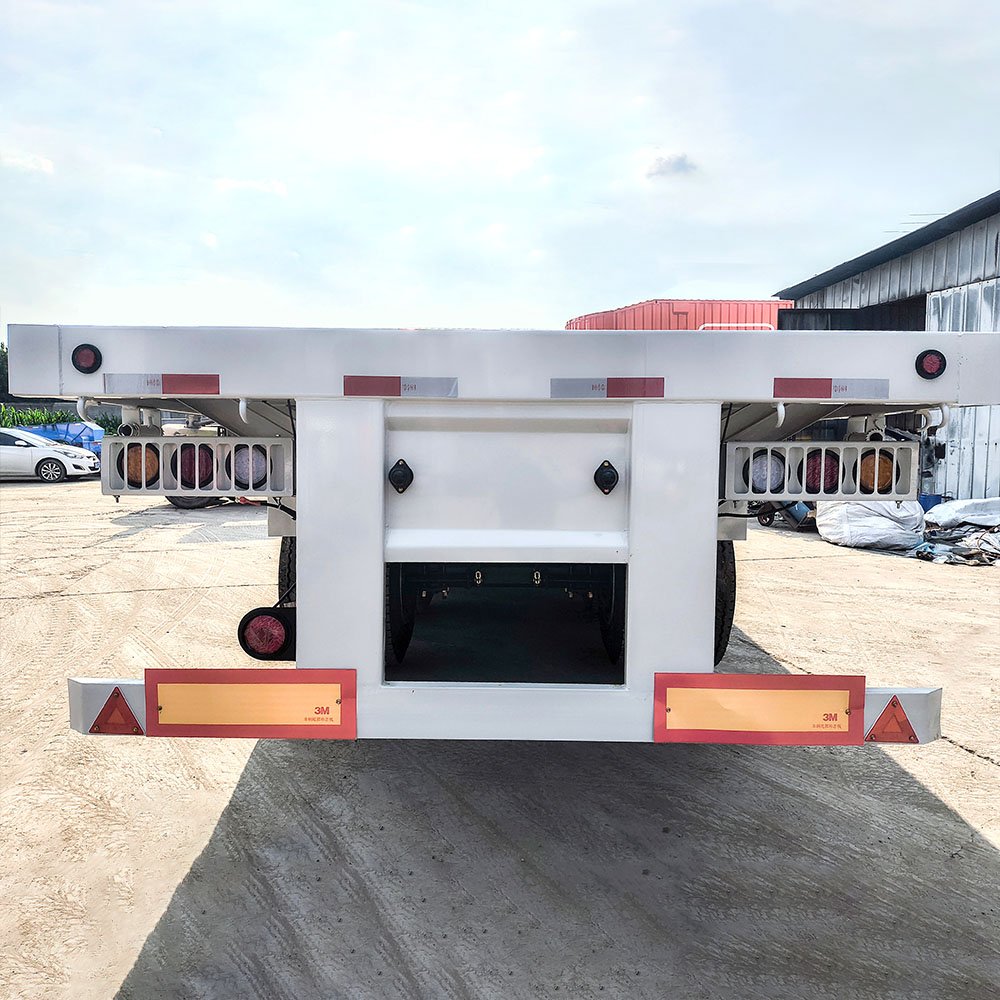

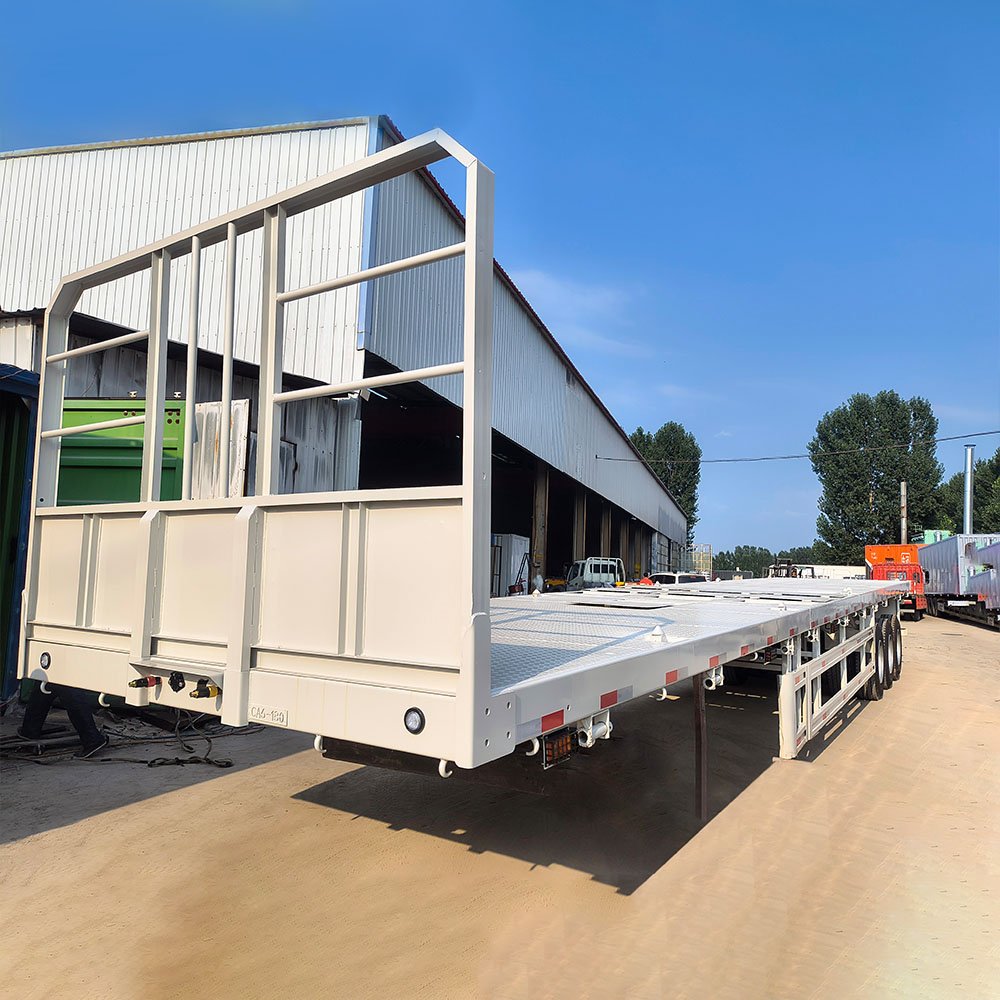

3-Axle Extendable Flatbed Trailer Detailed Description
ZW Group’s 3-Axle Extendable Flatbed Trailer is engineered for maximum flexibility and durability in transporting oversized and heavy cargo. The trailer features a sturdy steel chassis constructed from high-strength Q345B or T700 steel, designed to withstand heavy loads and harsh operating conditions. Its extendable chassis allows quick adjustment from 15 meters up to 23 meters, making it perfect for hauling machinery, containers, and other bulky freight.
Suspension options include rugged mechanical leaf springs for challenging terrains or air suspension for enhanced ride comfort and load leveling. Reliable FUWA, BPW, or ZW branded axles rated at 13 tons each ensure stable handling and long service life.
With an advanced braking system equipped with dual-line pneumatic brakes and optional ABS, safety remains a priority during transport. The trailer’s exterior is protected by automotive-grade polyurethane paint applied through advanced sandblasting and baking processes, providing excellent corrosion resistance and durability.
Additional customizable features such as toolboxes, spare tire carriers, and container twist locks offer operational convenience. All ZW Group trailers undergo rigorous load testing, static and dynamic inspections, ensuring the highest quality and reliability for international logistics demands.
Product Video
Key Features

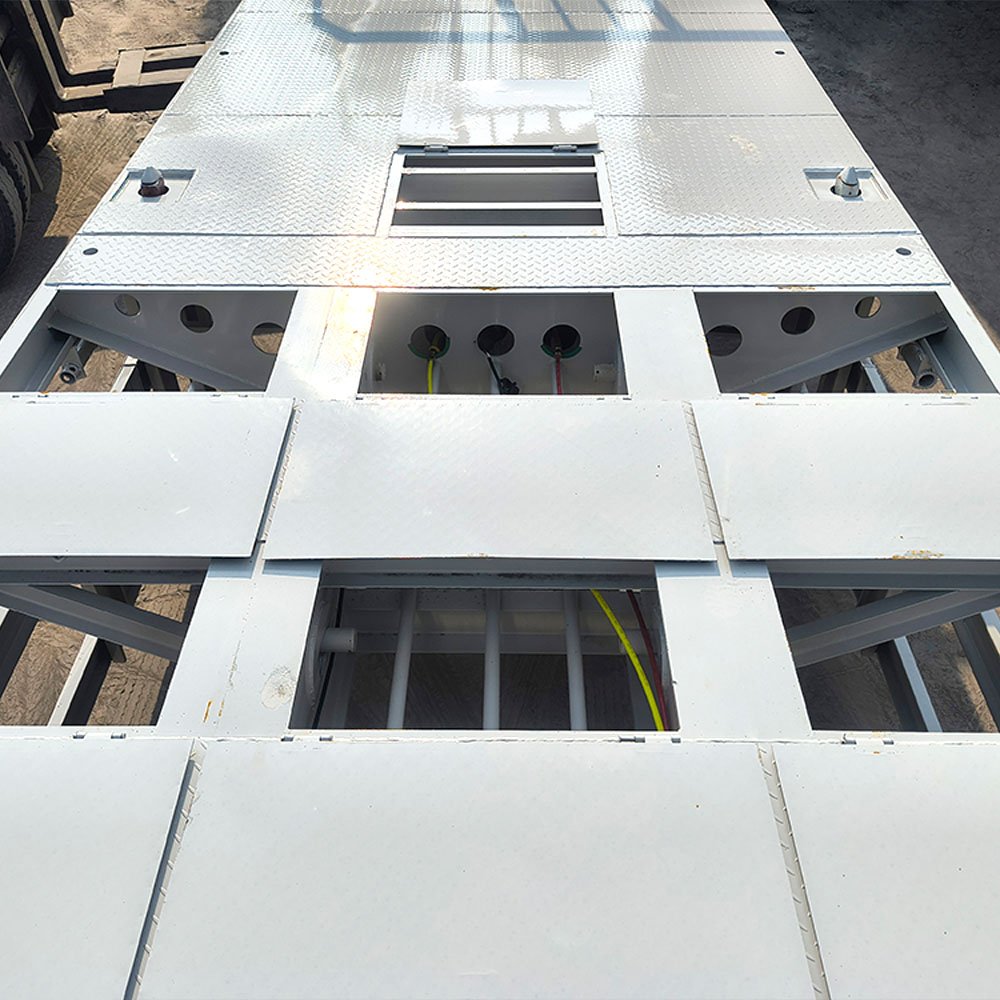

Extendable Chassis: Adjustable length from 15m to 23m to accommodate various cargo sizes.
Heavy-Duty Steel Frame: Made with high-strength Q345B or Q550 steel for enhanced durability and load-bearing capacity.
Suspension Options: Choose between mechanical leaf springs for rugged terrains or air suspension for smoother rides.

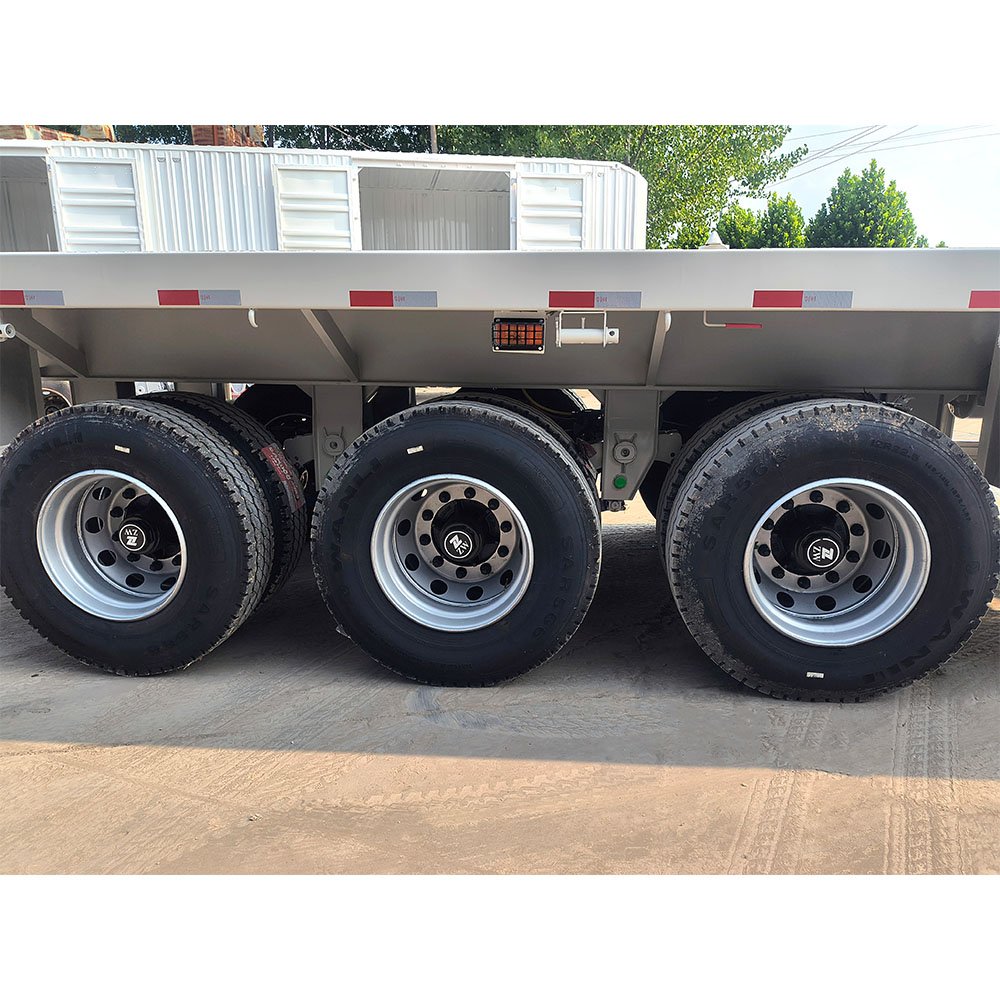

Axles: Reliable FUWA, BPW, or ZW branded 3-axle configuration rated at 13 tons each.
Braking System: Equipped with WABCO or Haldex air brakes and optional ABS for safety.
Customizable Accessories: Toolboxes, spare tire holders, container twist locks, and more available.
Advanced Coating: Automotive-grade polyurethane paint with anti-corrosion treatment for long-lasting exterior protection.

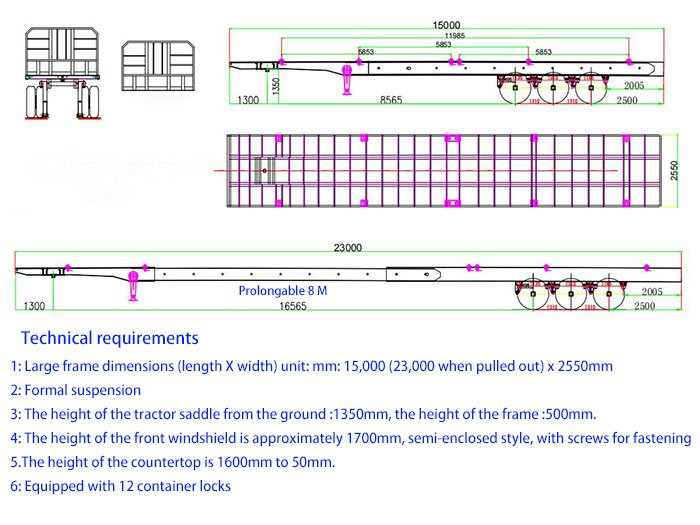

Specifications
| Specification | Details |
|---|---|
| Product Name | 3-Axle Extendable Flatbed Trailer |
| Length (Extendable) | 15,000 mm to 23,000 mm |
| Width | 2,550 mm |
| Height | 1,600 mm |
| Curb Weight | Approx. 9,950 kg |
| Main Beam Material | Q345B or T700 steel |
| Side Beam | 180 mm hot-rolled C-channel steel |
| Suspension | Mechanical leaf springs or air suspension |
| Axles | 3 × 13-ton FUWA/BPW/ZW axles |
| Tires | 12R22.5, 18 PR |
| Brake System | Dual-line pneumatic with optional ABS |
| Landing Gear | 28-ton double-speed |
| Electrical System | 24V, 7-core connector |
Application Scenarios
Heavy machinery transport
Oversized cargo hauling
Container shipping and intermodal logistics
Construction equipment delivery
Industrial freight transport
ZW Group Manufacturing Base
ZW Group operates a cutting-edge manufacturing facility equipped with advanced machinery and a skilled professional team. We oversee every production step—from steel plate cutting and forming to precision welding and rigorous quality inspections—to ensure top-quality 3-Axle Extendable Flatbed Trailers. Our factory specializes in producing versatile flatbed semi trailers tailored for oversized cargo, container transport, heavy machinery hauling, and industrial freight.
While our current emphasis is on robust 3-axle extendable flatbed trailers designed for flexibility and heavy-duty applications, this product is part of our broad semi-trailer range. Each trailer is engineered for exceptional strength, stability, and safety, fully meeting international standards such as ISO9001, CE, DOT, and CCC. Our expertise includes flatbed semi trailers, extendable flatbeds, lowbeds, removable gooseneck trailers, and hydraulic modular trailers—delivering reliable transport solutions for global logistics and heavy equipment industries.
Shipping Scenarios
ZW Group places great importance on the secure packaging, loading, and shipment of our 3-Axle Extendable Flatbed Trailers. Each trailer is carefully inspected by our experienced logistics team to ensure that essential components—such as the reinforced main chassis, high-quality FUWA/BPW axles, mechanical suspension, reliable braking system, and safety accessories—are firmly secured and fully protected during transit.
We follow strict shipping protocols and select the most appropriate transport methods—including bulk trucks, flat rack containers, and Roll-on/Roll-off (Ro-Ro) vessels—based on the trailer’s dimensions, weight, and delivery destination. These measures guarantee safe, damage-free, and punctual delivery to customers worldwide.
Through professional handling combined with comprehensive quality inspections throughout packaging and shipping, ZW Group provides dependable logistics services for industries including heavy machinery transport, oversized cargo hauling, and intermodal logistics. This dedication fosters strong, lasting partnerships with clients across global markets.
❓FAQ
Q1: What is the load capacity?
A1: Up to 40-50 tons depending on configuration.
Q2: Can the trailer length be extended?
A2:Yes, from 13,000mm to 23,000mm.
Q3: What suspension types are available?
A3: Mechanical leaf springs standard; air suspension optional.
Q4:Is customization offered?
A4: Yes, including length, color, and accessories.
Q5: What braking system does it use?
A5: Dual-line air brakes with optional ABS.
Q6: How long is delivery?
A6: Typically 20-30 days.
Q7: Suitable for oversized cargo?
A7: Yes, ideal for heavy and oversized loads.
Q8: What safety features are included?
A8: LED lights, reflectors, and secure locking pins.
