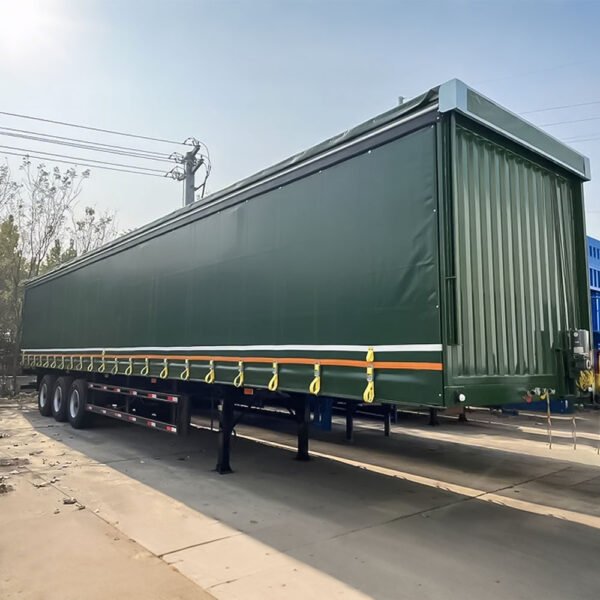

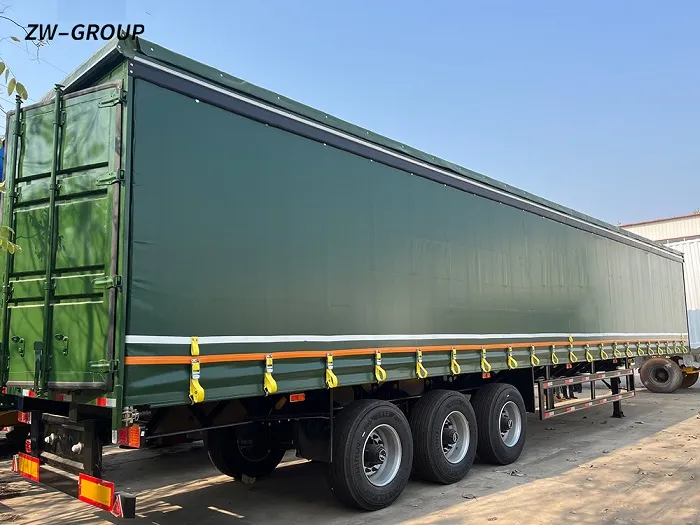

3-Axle Curtain Cargo Trailer Detailed Description
Operational Versatility and Loading Speed
ZW Group’s Curtain Cargo Trailer is built for efficiency. The key feature is the advanced sliding PVC curtain system, which utilizes smooth-running rollers and heavy-duty tensioning ratchets. This allows the entire side of the trailer to be opened in seconds, providing a clear 13-meter opening for lateral material handling. This capability drastically reduces the time spent at loading docks, boosting your fleet’s daily trip count.
Structural Adaptability and Customization
The vehicle maintains its integrity through a precision-welded Q345B steel chassis and three heavy-duty 13-ton axles. To protect sensitive cargo (such as electronics or beverages), customers can choose between mechanical leaf spring or air suspension systems.
Furthermore, we offer extensive customization for branding: the large, flat surface of the curtains is an ideal mobile billboard. We provide high-quality UV-resistant logo printing and a wide range of curtain colors to match your corporate identity.
Product Video
Key Features
Rapid Side Loading: Sliding curtain system for 360° cargo access.
40T High Payload: Engineered for high-density industrial and retail freight.
Weather-Tight Seal: 900g/m² reinforced PVC ensures 100% protection from rain and dust.
Premium Braking: Equipped with the WABCO dual-line pneumatic system for maximum safety.
Flooring Options: Choose between 28mm hardwood (for high friction) or 3mm steel checker plate (for heavy forklift use).
JOST Components: Features world-class JOST two-speed landing gear and kingpins.
Integrated Tie-Downs: Multiple internal lashing points to secure diverse cargo types.
Specifications
| Specification | Detail |
| Model | ZW Tri-Axle Tautliner / Curtain Side |
| Overall Dimensions | 13,000 × 2,550 × 4,000 mm |
| Payload Capacity | 40,000 kg (40 Tons) |
| Tare Weight | Approx. 6,800 kg |
| Curtain Material | 900g/m² High-Tenacity PVC |
| Axles | 3 × 13T (FUWA / BPW / SAF Brand) |
| Braking System | WABCO Dual-Line Pneumatic |
| Floor Type | 28mm Hardwood or 3mm Diamond Steel |
| Suspension | Mechanical / Air Suspension Optional |
| Tires | 12R22.5 or 385/65R22.5 (Super Single) |
Application Scenarios
Retail & FMCG Distribution: Perfect for distribution centers requiring frequent, fast side-unloading of consumer goods and groceries.
Beverage & Palletized Logistics: The ideal carrier for pallets of bottled water, beer, and soft drinks, ensuring stability and quick access.
Industrial Machinery Transport: Securely carrying machinery and components that require overhead or side forklift loading.
Agricultural & Weather-Sensitive Freight: Transporting palletized crops or fertilizers with full protection against environmental elements.
ZW Group Curtain Side Semi Trailer Production Workshop
At our modern manufacturing facility, we manage every stage of production in-house. We focus specifically on the welding precision of side posts and roof beams, which are critical for maintaining the stability of the curtain tensioning system. Every trailer undergoes a waterproof pressure test and a 100% curtain-glide inspection to guarantee operational reliability in demanding heavy-duty conditions.
Shipping Scenarios
ZW Group ensures your trailers are delivered safely and cost-effectively. To minimize ocean freight, we offer stacking arrangements for Ro-Ro or Bulk Carrier shipment. Before dispatch, our logistics team inspects the sliding curtain assembly and secures all movable parts. Each unit is treated with marine-grade anti-corrosion wax, ensuring it arrives ready for immediate deployment in your logistics fleet.
❓FAQ
Q1: What is the payload capacity of the 3-Axle Curtain Cargo Trailer?
A:The trailer supports up to 40,000 kg, suitable for a wide range of palletized and industrial cargo.
Q2: Can I customize the curtain color or logo?
A:Yes, customization is available for curtain color, logo printing, and graphics to meet specific corporate branding needs.
Q3: Which suspension options are available?
A:Both mechanical leaf spring and air suspension systems are available, allowing choice based on road conditions and cargo fragility.
Q4:How is loading and unloading handled?
A:The sliding curtain system enables quick and highly convenient side access, which significantly reduces material handling turnaround time.
Q5: What tire sizes come standard?
A:Customers can choose between 12R22.5 and 385/65R22.5, ensuring optimal durability and road performance.
Why Choose ZW Group?
Over 10 years of international experience manufacturing and exporting semi-trailers to 60+ countries worldwide.
Modern factory covering 50,000m², staffed by a skilled team of over 200 professionals and supporting personnel.
Strict quality control to ensure durable and high-performance trailers you can rely on.
Dedicated after-sales service with quick response to support your operations smoothly.
