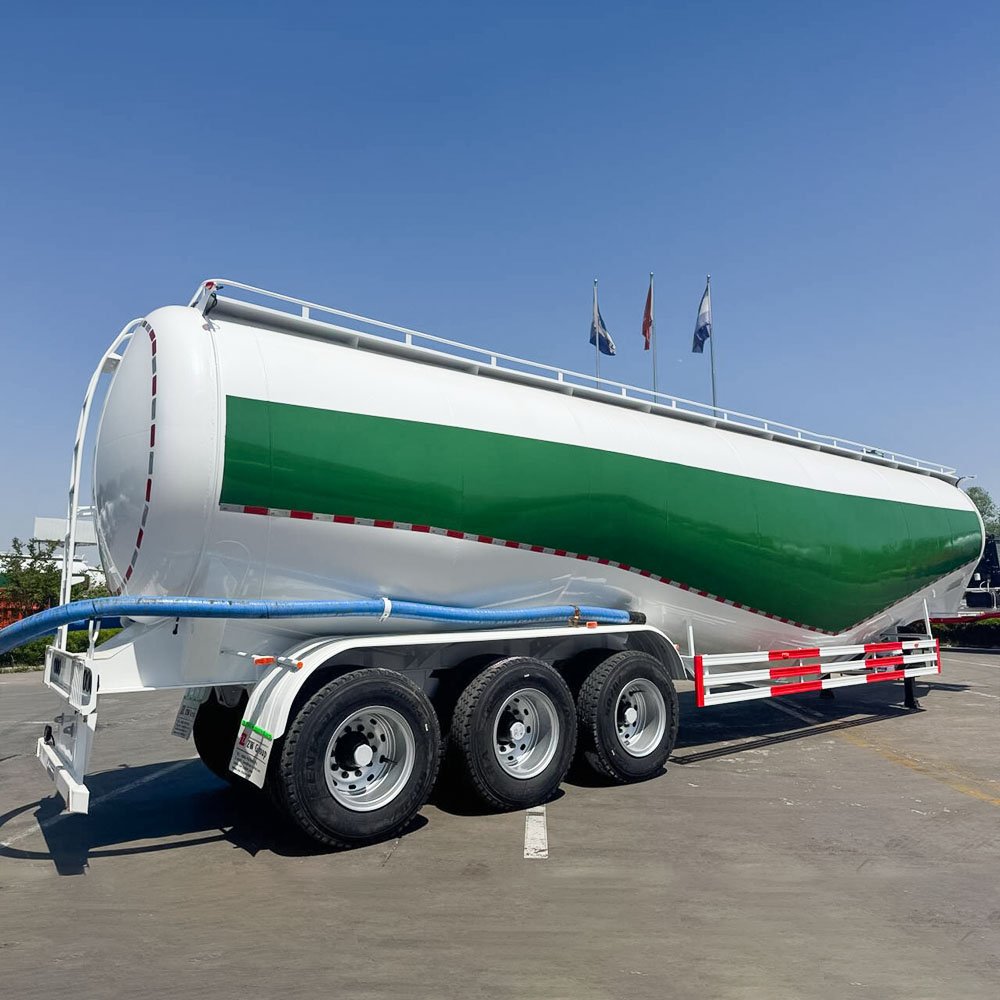

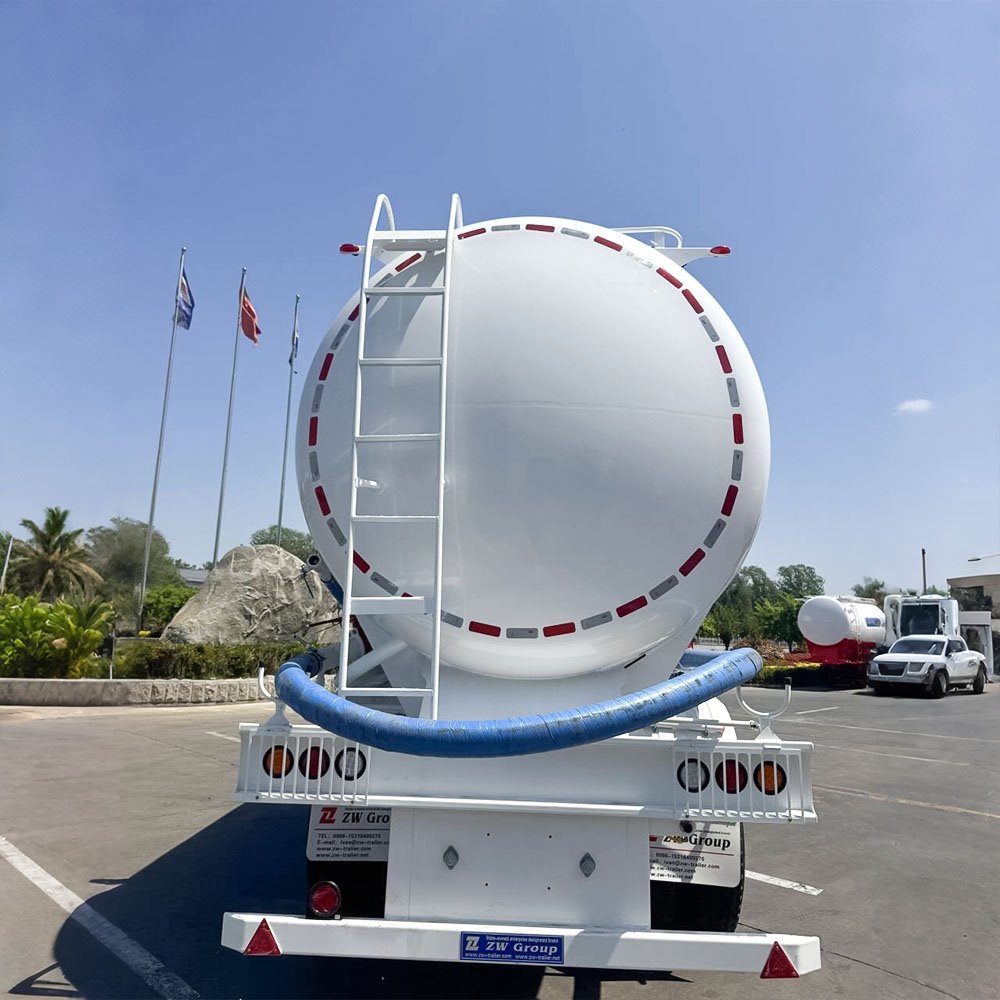

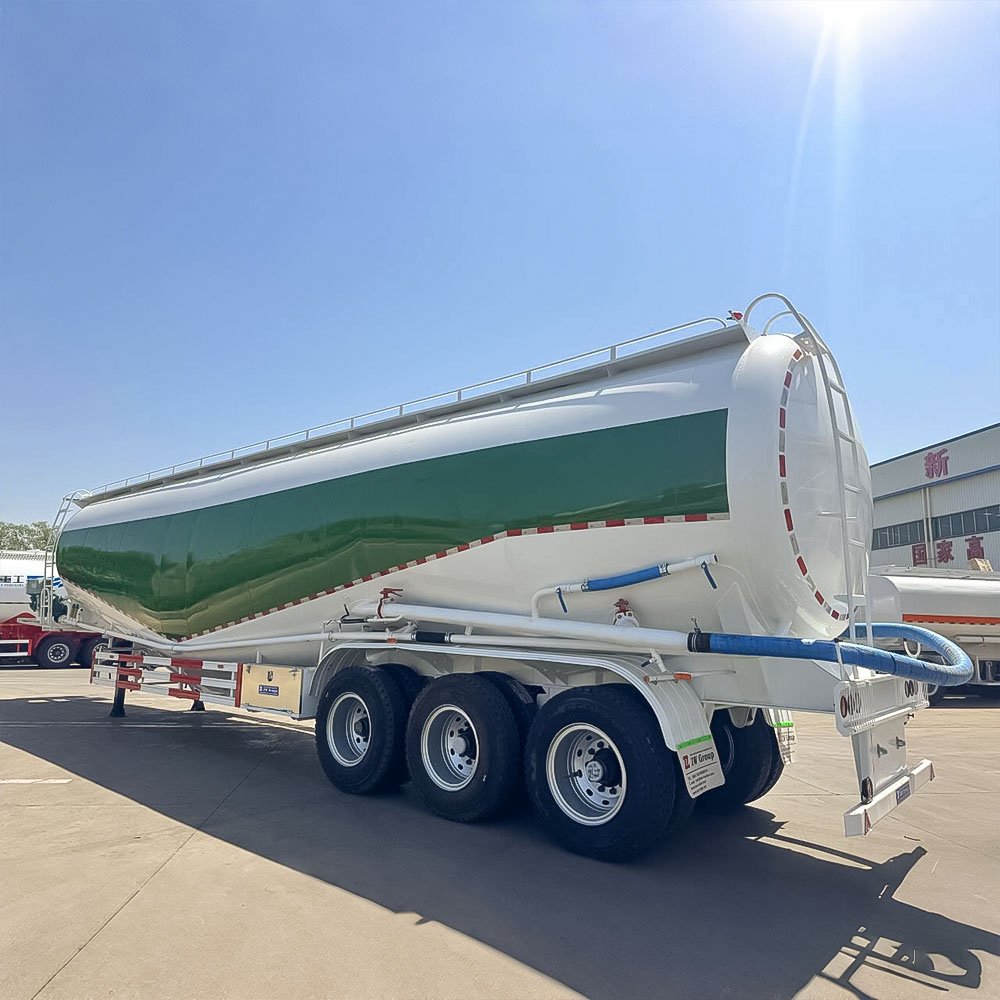

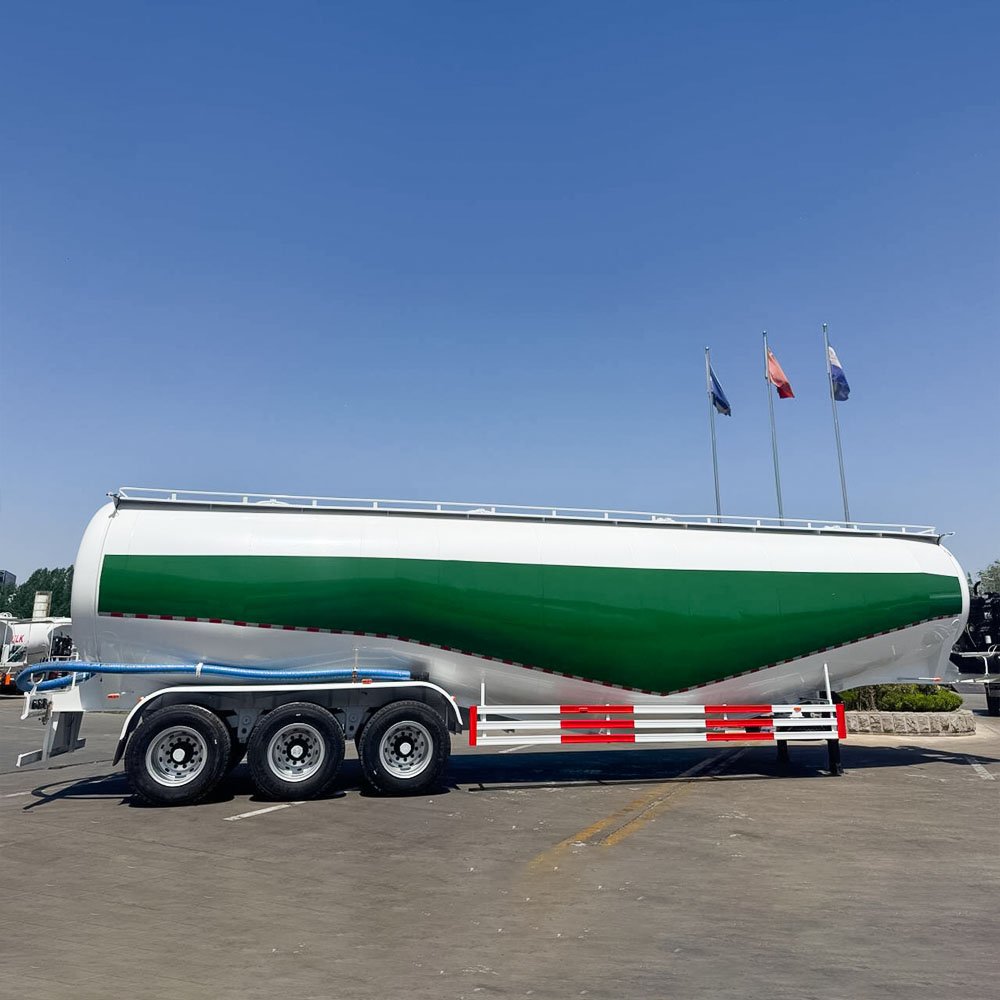

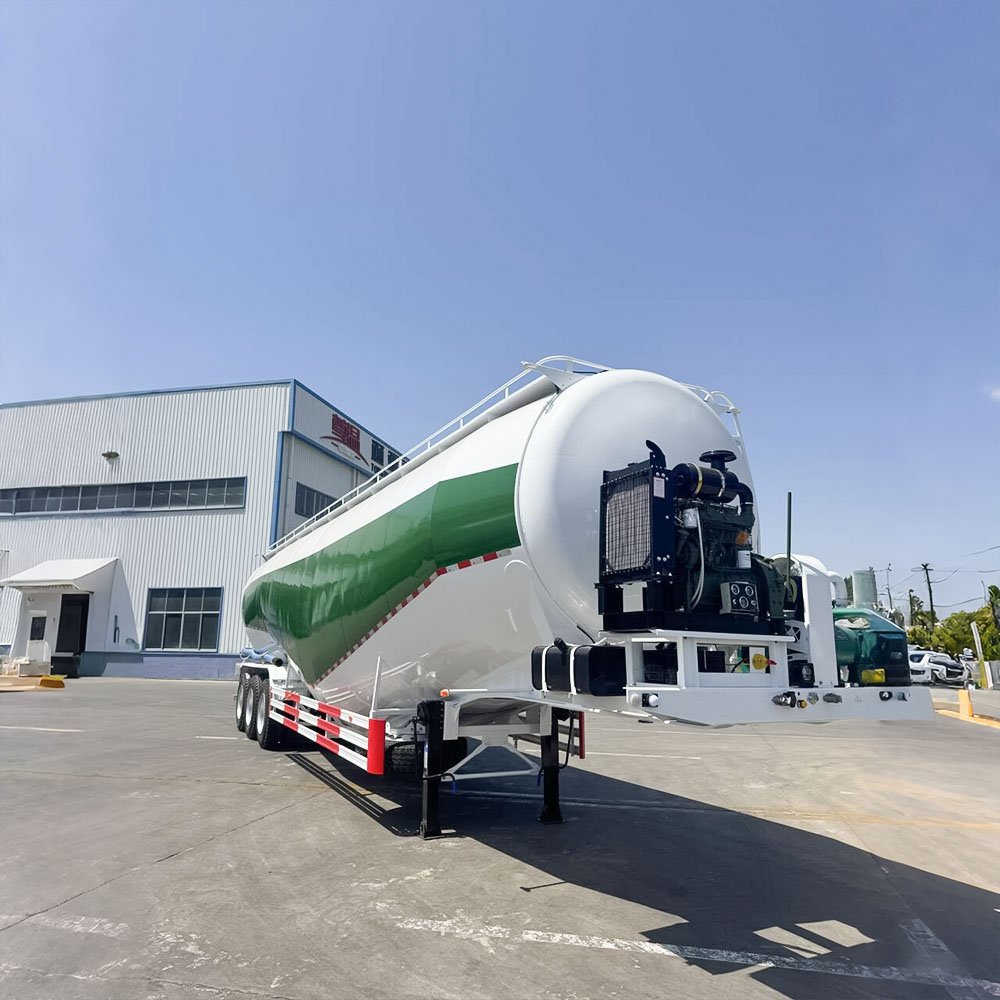

3 Axle Bulk Cement Semi Trailer Detailed Description
Maximum Payload & Low-Residue Unloading
In the world of bulk powder transport, volume is profit. Our 85CBM tank is one of the largest in the industry, optimized for materials with lower bulk density or high-volume requirements. The internal fluidized bed is precision-angled to guide every grain toward the discharge outlet, achieving a record-low residue rate of less than 0.3%. This means more material delivered and less time spent on tank maintenance.
Rugged Construction for Pressure & Road Stress
Safety in a pressure vessel is non-negotiable. The tank body is fabricated from 4mm high-strength carbon steel, with the dish ends reinforced to 5mm to withstand constant pressure cycles. The chassis is built on a Q345B high-tensile steel frame, supported by a heavy-duty mechanical leaf spring suspension. This ensures the trailer maintains a low center of gravity and excellent tracking stability even when hauling a full 60-ton load across uneven construction sites.
Product Video
Key Features
85CBM Giant Capacity: Engineered for maximum efficiency in dry powder logistics.

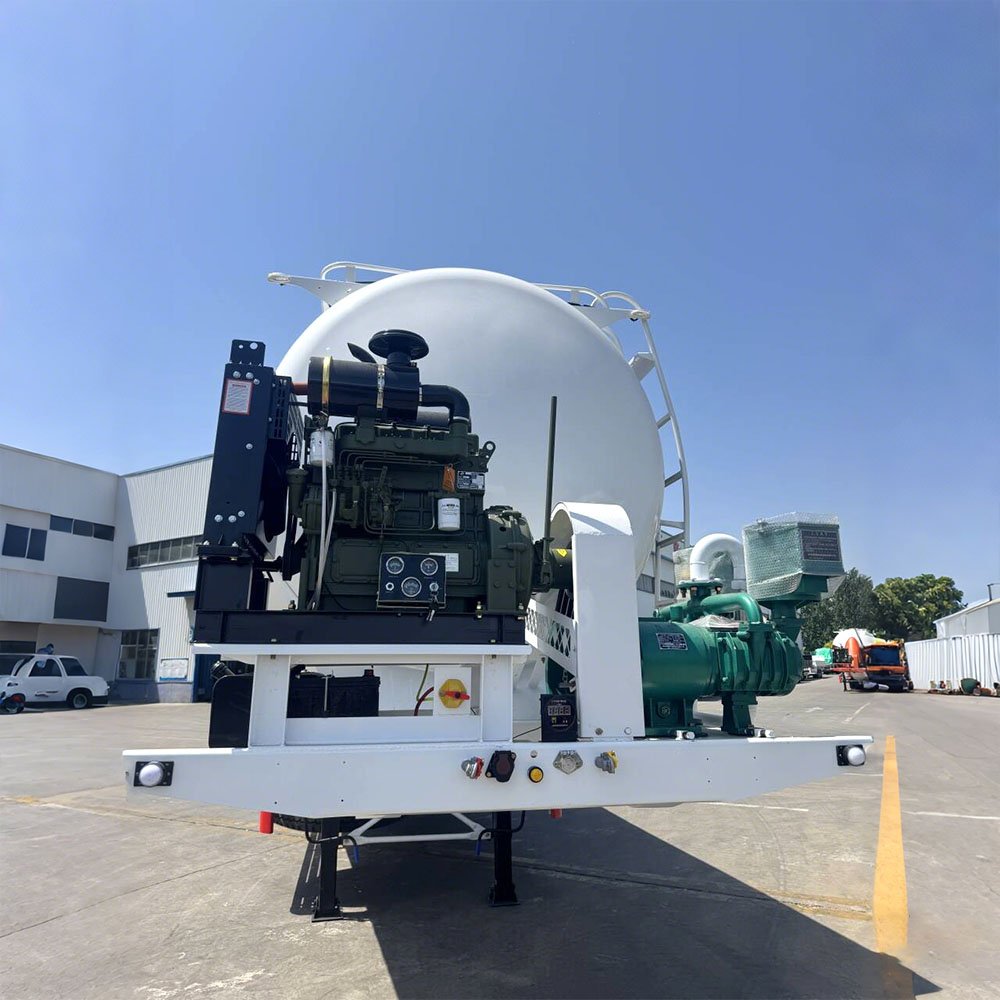

Rapid Discharge System: Powered by a high-performance diesel engine and domestic/international brand air compressors.
Reinforced Pressure Vessel: 100% X-ray inspected weld seams for maximum safety and longevity.
Low Residue Design: V-shaped tank geometry ensures clean, fast unloading.
Heavy-Duty Running Gear: Features 3 x 13T axles and 12R22.5 tubeless tires for superior load bearing.
Dual-Safety Protection: Equipped with dual safety relief valves and secondary pressure gauges.
Complete Accessory Kit: Includes 8m high-wear-resistant discharge hoses and reinforced rear ladders.
Structure Diagram of Cement Tanker Semi Trailers
This section showcases ZW Group’s powder tanker semi trailers, designed for transporting cement, flour, chemical powders, and other bulk materials. For instance, diesel engines and air compressors power efficient unloading. In addition, mechanical suspension and landing gears ensure stable support during transport. Moreover, strict quality control guarantees reliable performance and safety. As a result, our trailers meet global standards and serve diverse powder transport needs.
Specifications
| Item | Specification |
| Tank Capacity | 85 Cubic Meters (CBM) |
| Tank Body Material | 4 mm Carbon Steel (Ends: 5 mm Reinforced) |
| Chassis Material | Q345B High-Strength Steel |
| Axles | 3 × 13 Ton |
| Loading Capacity | 50–60 Tons (Depends on Material Density) |
| Tank Shape | V Shape Silo |
| Discharge System | Pneumatic System, Diesel Engine + Air Compressor |
| Tires | 12R22.5 Tubeless × 12 |
| King Pin | 2.00” (50#), Bolted Type |
Application Scenarios
Large-Scale Construction & Dams： Ensuring a continuous, high-volume supply of cement for massive concrete pours in infrastructure projects.
Cement & Fly Ash Distribution： Optimizing logistics between cement plants and urban distribution hubs with fewer vehicle movements.
Industrial Powder Logistics： Ideal for the transport of lime powder, mineral powder, and other dry chemical bulk materials.
Port & Intermodal Transfer： The integrated pneumatic system facilitates fast material transfer from storage silos to transport units.
ZW Group Tank Body Production Workshop
Our specialized powder tanker facility utilizes automated longitudinal and circumferential welding to ensure the integrity of the pressure vessel. Every 85CBM tanker undergoes a rigorous air-tightness test and pressure holding test at 0.2MPa. We focus on the “Fluidization Detail”—using high-quality canvas and internal air-slide systems that prevent material bridging, ensuring your discharge is smooth every single time.
Shipping Scenarios
ZW Group manages the complex shipment of oversized tankers with professional care. Before dispatch, the diesel engine and compressor are fully serviced and tested. To protect your investment from sea salt, we apply multi-layer anti-corrosion wax to the entire tank and chassis. We primarily utilize Bulk Cargo or Ro-Ro vessels, handling all specialized pressure vessel documentation for a smooth customs clearance process.
❓FAQ
Q1: What is the maximum loading capacity of this trailer?
A: It can load approximately 50–60 tons, depending on the specific bulk powder material’s density.
Q2: What specific material is the tank body made from?
A:The tank is made from 4mm thick carbon steel with 5mm reinforced end plates for superior strength.
Q3:What is the primary advantage of the V-shaped tank design?
A:The V shape silo design ensures faster unloading, minimizes material retention to less than 0.3%, and significantly reduces waste.
Q4: What powers the pneumatic discharge system?
A:The discharge system is powered by a dedicated diesel engine and air compressor for smooth and reliable operation.
Q5:What is the axle configuration and rating?
A:The trailer utilizes a triple-axle system, with each of the 3 axles rated at 13 tons.
Why Choose ZW Group?
Over 10 years of international experience manufacturing and exporting semi-trailers to 60+ countries worldwide.
Modern factory covering 50,000m², staffed by a skilled team of over 200 professionals and supporting personnel.
Strict quality control to ensure durable and high-performance trailers you can rely on.
Dedicated after-sales service with quick response to support your operations smoothly.
