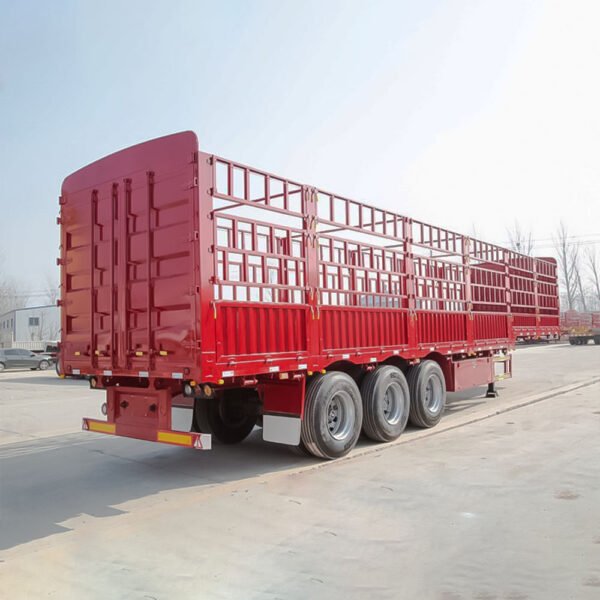

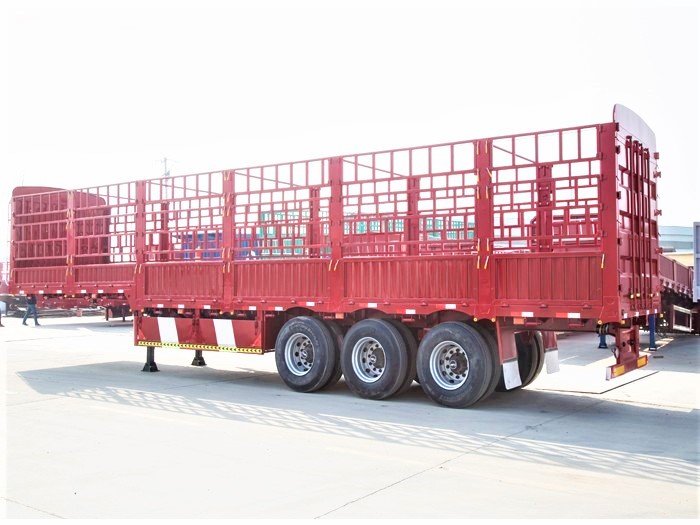

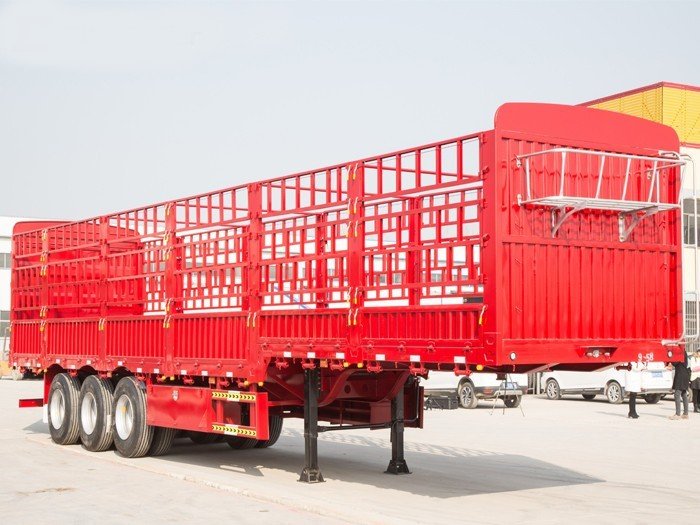

3 Axle 60T Fence Semi Trailer Detailed Description
T700 Steel Chassis & Structural Superiority
The core of this trailer is its T700 high-tensile steel main beam. This advanced material provides superior resistance to bending and fatigue, ensuring the chassis remains straight even under maximum capacity.
We offer both Straight Beam and Gooseneck designs. The gooseneck option effectively lowers the center of gravity, significantly enhancing stability and safety when navigating mountainous roads or sharp turns with heavy loads.

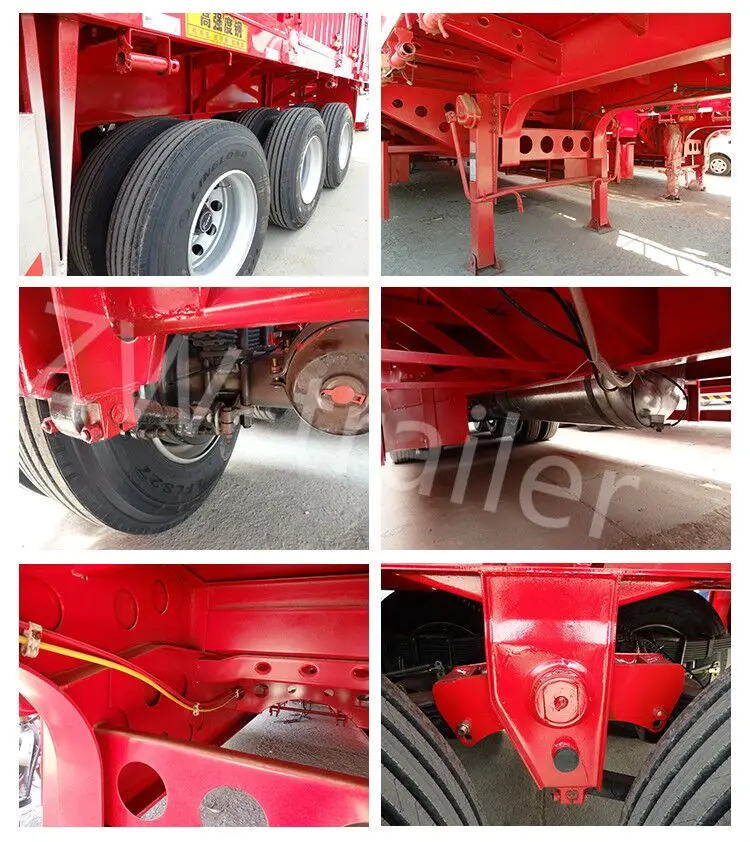

Reliable Running Gear for Harsh Roads
To guarantee long-haul reliability, the trailer is equipped with 3 × 13-ton FUWA axles and a reinforced 10/10/10 mechanical suspension.
This robust setup ensures balanced weight distribution and stable braking performance. The 3mm diamond-pattern floor plate provides an anti-skid surface, while the customizable fence heights (up to 1,550mm) allow for a wide range of cargo types, from construction materials to packaged machinery.
Product Video
Key Features
60T High Capacity: Optimized for industrial, construction, and bulk logistics.
T700 Steel Construction: Stronger and lighter than standard carbon steel frames.
Stability Options: Available in Gooseneck design for a lower center of gravity.
Premium FUWA Axles: 13-ton rated axles for reduced maintenance and long life.
Reinforced Suspension: 10-leaf spring system designed for uneven road conditions.
Flexible Loading: High-fence sidewalls for secure containment and easy side-access.
Anti-Corrosion Finish: Multi-layer coating to resist salt, moisture, and industrial wear.
Specifications
| Parameter | Specification |
| Model | 3-Axle 60T Fence Semi Trailer |
| Loading Capacity | 60,000 kg (60 Tons) |
| Dimensions | 13,500 × 2,700 × 3,350 mm |
| Main Beam | T700 High-Strength Steel (500mm Height) |
| Axles | 3 × 13T FUWA / BPW Optional |
| Suspension | Mechanical Leaf Spring (10/10/10 System) |
| Fence Height | 600mm Sidewall + 1,000mm Fence (Customizable) |
| Tires | 12R22.5 Tubeless (13 Units including Spare) |
| Floor Plate | 3mm Diamond Pattern Steel |
Application Scenarios
Construction & Infrastructure：Reliable transport for steel bars, cement bags, and prefabricated components.
Agricultural Logistics：Perfect for bulk crops, packaged fertilizers, and livestock supplies with high stability.
Machinery & Industrial Freight：Secure containment for crated machinery, oversized parts, and non-standard industrial loads.
Cross-Border Logistics：Built to withstand the rigors of long-distance hauling across varied road qualities and climates.
ZW Group Fence Semi Trailer Production Workshop
Our Shandong-based production line utilizes robotic longitudinal welding and CNC precision cutting to ensure millimetric accuracy in every chassis.
Every 60T Fence Trailer undergoes a rigorous 100% quality inspection, including load-testing and braking system verification. ZW Group specializes in durable, high-performance trailers designed to meet the strictest international safety standards.
Shipping Scenarios
ZW Group manages secure packaging and reliable global shipment. Each unit is treated with anti-corrosion wax to protect the T700 steel during sea transit.
We offer shipping via Bulk Carrier, Ro-Ro, or Flat Rack, ensuring your trailers arrive safe, on time, and ready for immediate operation. Our logistics team provides full documentation for a seamless delivery to your destination.
❓FAQ
Q1: What is the maximum load capacity?
A1: The rated load capacity is 60 tons, suitable for heavy-duty general cargo.
Q2: What suspension system is used?
A2: Standard mechanical leaf spring suspension; air suspension is optional.
Q3: Can it be configured as a side wall or curtain side trailer?
A3: Yes. Fence, side wall, curtain side, and box-type configurations are supported.
Q4: What industries commonly use this trailer?
A4: Construction, logistics, agriculture, mining support, and infrastructure projects.
Q5: Is customization available?
A5: Yes. Dimensions, fence height, sidewalls, suspension, and accessories can all be customized.
Why Choose ZW Group?
Over 10 years of international experience manufacturing and exporting semi-trailers to 60+ countries worldwide.
Modern factory covering 50,000m², staffed by a skilled team of over 200 professionals and supporting personnel.
Strict quality control to ensure durable and high-performance trailers you can rely on.
Dedicated after-sales service with quick response to support your operations smoothly.
