12m 20ft Skeletal Semi Trailer Detailed Description
The 20ft Skeletal Container Semi Trailer from ZW Group is specifically engineered to handle ISO standard containers efficiently. Thanks to its open skeletal frame, operators can load and unload containers quickly, improving workflow at ports, logistics hubs, and intermodal terminals.
Its chassis features a 500mm reinforced main beam with 14mm upper, 8mm middle, and 16mm lower plates made from Q345 steel. This structure ensures superior resistance to bending and torsion, delivering long-term reliability under heavy loads and frequent transport.
Moreover, the trailer uses two 13-ton FUWA axles with a dual-line pneumatic brake system featuring multiple air chambers, providing stable handling and safe braking even on challenging terrains. The 12 container twist locks securely fasten containers, minimizing movement during transit.
Additionally, a corrosion-resistant paint system—including sandblasting, anti-corrosive primer, and urethane topcoat—extends the trailer’s service life while maintaining a professional appearance. Operators can also customize side guards to meet local regulations and operational preferences.
Overall, this trailer combines durability, efficiency, and safety, making it a preferred choice for global container transport, heavy freight operations, and intermodal logistics.
Product Video
Key Features
High-Strength Steel Frame: Reinforced 500mm main beam ensures excellent load-bearing capacity.

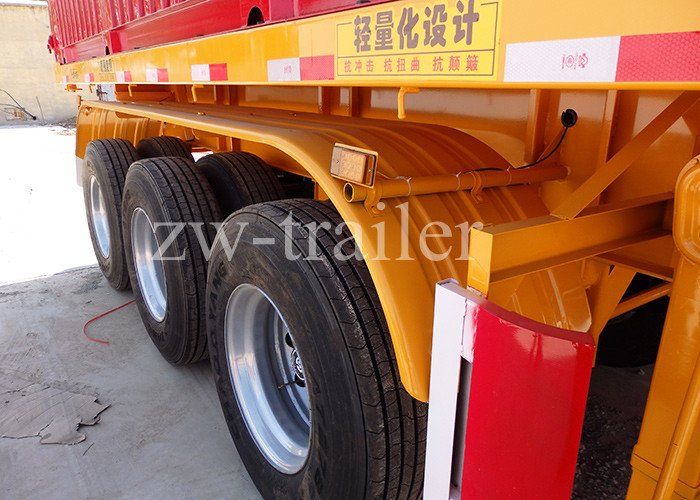

Premium FUWA Axles: 13-ton axles provide stable and reliable performance.
Dual-Line Pneumatic Brakes: Equipped with multiple air chambers for safe stopping.
Secure Twist Locks: Twelve locks safely secure 20ft containers during transit.
Corrosion-Resistant Paint: Long-lasting finish with customizable colors.
Flexible Side Guards: Adjustable to client needs and local regulations.
Optimized Dimensions: 12500 × 2500 × 1550 mm fits standard containers.
Structure Diagram of Skeleton Trailer
This section features a detailed CAD drawing and an exploded view of the skeleton trailer, showcasing the chassis structure, kingpin position, axle configuration, and key mounting points. It provides a clear visual reference for engineering layout and component integration.
Specifications
| Parameter | Specification |
|---|---|
| Model | 20ft Skeletal Container Semi Trailer |
| Overall Dimensions | 12500 mm (L) × 2500 mm (W) × 1550 mm (H) |
| Tare Weight | 6550 kg |
| Loading Capacity | 40,000 kg |
| Wheelbase | 2300 mm + 1310 mm + 1310 mm |
| Main Beam | 500mm height, 14/8/16mm Q345 steel plates |
| Axle Brand | 13-ton FUWA |
| Brake System | Dual-line pneumatic, two double + two single air chambers |
| Side Guard | Customizable |
| Paint | Sandblast + anti-corrosive primer + urethane topcoat |
| Container Locks | 12 sets |
| Shipping Method | Bulk cargo ship, Ro-Ro, or container |
Application Scenarios
Container Transport: Efficiently carries 20ft standard containers at ports and terminals.
Intermodal Logistics: Ideal for smooth transfer between trucks, ships, and trains.
Highway Freight: Reliable container hauling across industrial zones and long distances.
Heavy-Duty Operations: Suited for demanding environments requiring stable, durable trailers.

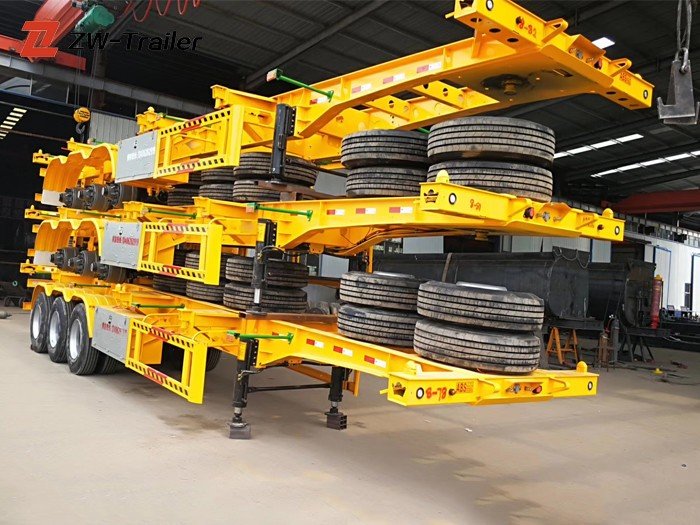

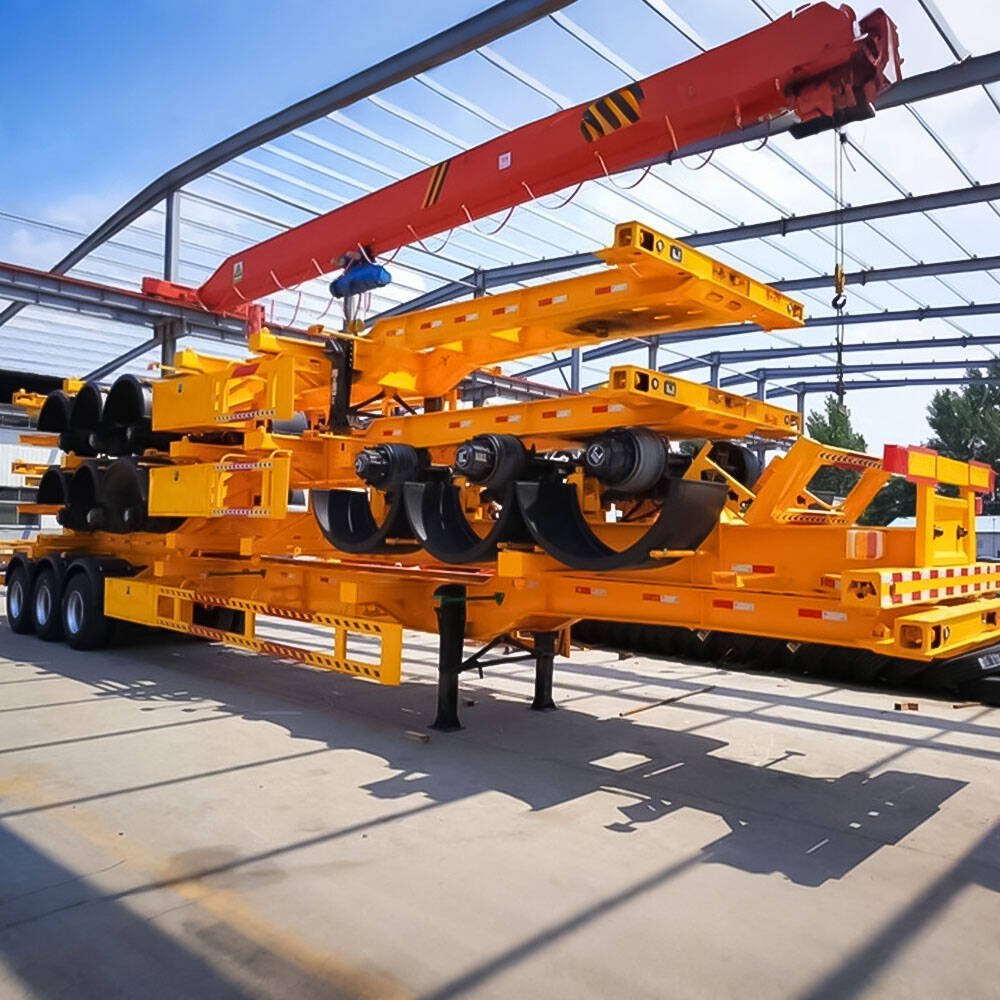

ZW Group Manufacturing Base

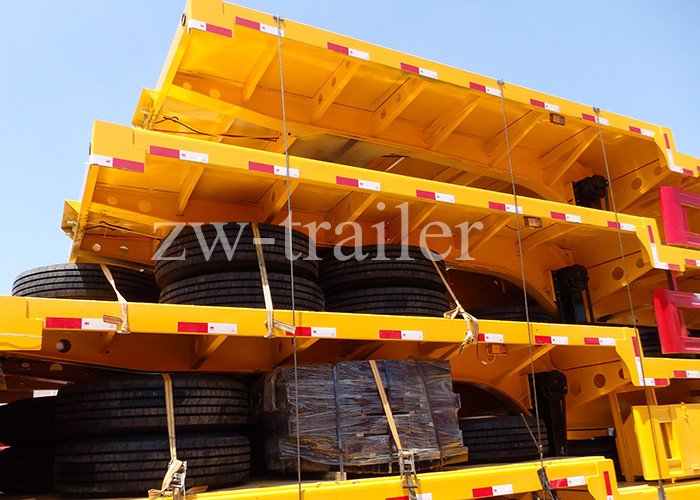

Shipping Scenarios
ZW Group emphasizes secure loading, inspection, and shipment. Each trailer undergoes careful handling to protect chassis frames, FUWA axles, suspension systems, and braking components. We select optimal transport methods—including bulk cargo trucks, flat rack containers, and Roll-on/Roll-off vessels—to ensure damage-free and timely delivery worldwide.
Through professional logistics and quality control, ZW Group provides dependable container transport solutions for ports, intermodal operations, and heavy-duty shipping needs.
❓FAQ
Q1: What is the load capacity of this trailer?
A1:Up to 40 tons, ideal for 20ft containers.
Q2: Which axle brand is used?
A2: Equipped with 13-ton FUWA axles for stable performance.
Q3: Can I customize side guards or paint color?
A3: Yes, both are customizable.
Q4: What braking system does it use?
A4: Dual-line pneumatic brakes with multiple air chambers.
Q5:How is it shipped?
A5: Via bulk cargo ships, Ro-Ro vessels, or containers.
Q6: Delivery time?
A6: Typically 20–30 days after order confirmation.
Q7: Is after-sales support provided?
A6:Yes, including spare parts and technical assistance.
